QUESTION ONE A reservoir in Kanjo filed is shown in Figure 1. The reservoir is tilted at a dip angle of 5. Use the relat

[answerhappygod]

Question One A Reservoir In Kanjo Filed Is Shown In Figure 1 The Reservoir Is Tilted At A Dip Angle Of 5 Use The Relat 1 (38.12 KiB) Viewed 16 times

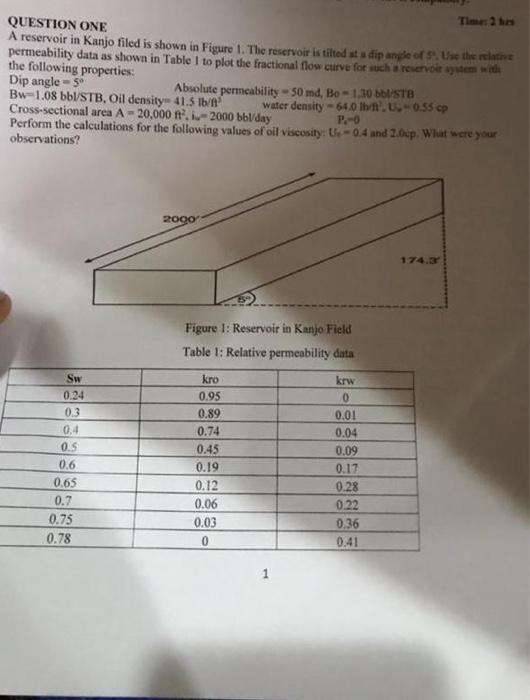

QUESTION ONE A reservoir in Kanjo filed is shown in Figure 1. The reservoir is tilted at a dip angle of 5. Use the relative permeability data as shown in Table I to plot the fractional flow curve for such a reservoir system with the following properties: Dip angle = 5⁰ Bw 1.08 bbl/STB, Oil density 41.5 lb/ft³ Absolute permeability 50 md, Bo-1.30 bbl/STB Cross-sectional area A-20,000 ft², i-2000 bbl day water density-64.0 lb/ft, U-0.55 cp P.-0 Perform the calculations for the following values of oil viscosity: U-0.4 and 2.0up. What were your observations? Sw 0.24 0.3 0.4 0.5 0.6 0.65 0.7 0.75 0.78 2000 Figure 1: Reservoir in Kanjo Field Table 1: Relative permeability data kro 0.95 0.89 0.74 0.45 0.19 0.12 0.06 0.03 0 krw 0 0.01 0.04 0.09 0.17 0.28 0.22 0.36 0.41 Time: 2 hrs 174.3
