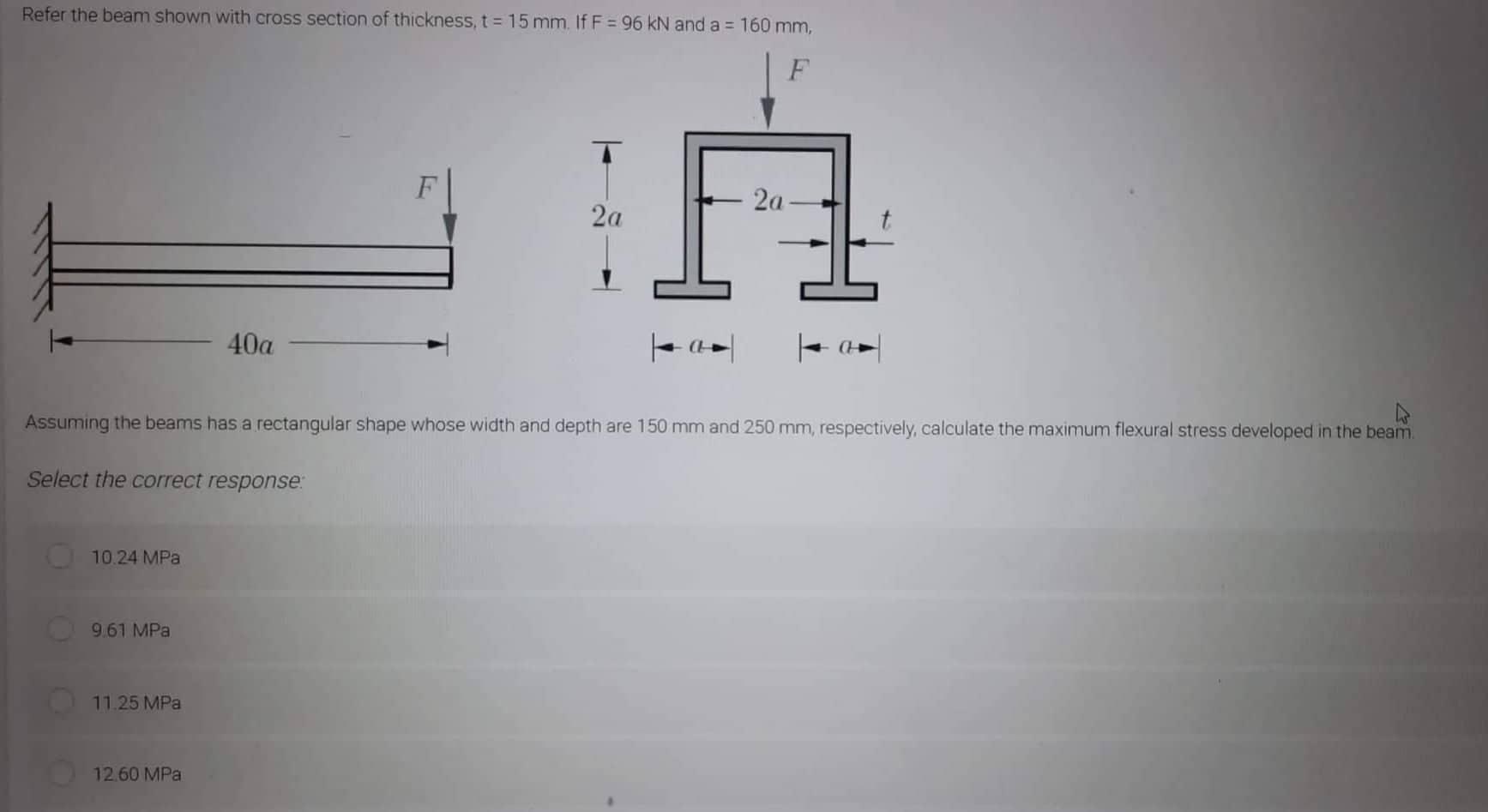

Refer the beam shown with cross section of thickness, t = 15 mm. If F = 96 kN and a = 160 mm, F Select the correct respo

[answerhappygod]

Refer The Beam Shown With Cross Section Of Thickness T 15 Mm If F 96 Kn And A 160 Mm F Select The Correct Respo 1 (57.18 KiB) Viewed 15 times

Refer the beam shown with cross section of thickness, t = 15 mm. If F = 96 kN and a = 160 mm, F Select the correct response: 10.24 MPa Assuming the beams has a rectangular shape whose width and depth are 150 mm and 250 mm, respectively, calculate the maximum flexural stress developed in the beam. 9.61 MPa 40a 11.25 MPa 12,60 MPa 2a - 2a-
