Given the soil stress element, σx = (20 + AC) kPa, σy = (100 +BD) kPa and τxy = (10 kPa a. Determine the maximum and min

Post by answerhappygod »

1
1 (9.7 KiB) Viewed 15 times

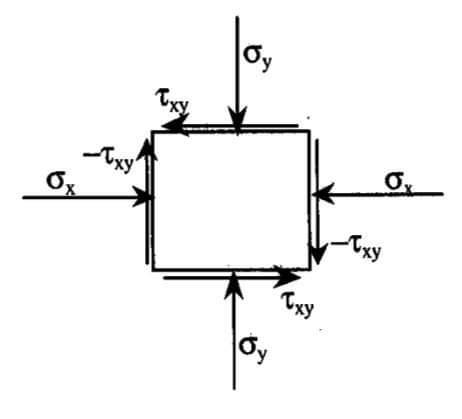

Given the soil stress element, σx = (20 + AC) kPa, σy = (100 +BD) kPa and τxy = (10 kPaa. Determine the maximum and minimum principal stressesb. Determine the normal stress on plane AB if the failure plane is35 degrees counterclockwise from y-plane.c. Challenge Problem: what inclination and direction of the stresselement to remove the shear stress? Refer to your Mohr Circle.AB=51
-Txy Gxy б, Txy -Txy О,
