A 4-m cantilever beam is loaded as shown. The cross section is formed with two concentric circles of radii 45 mm and 35

Post by answerhappygod »

A 4 M Cantilever Beam Is Loaded As Shown The Cross Section Is Formed With Two Concentric Circles Of Radii 45 Mm And 35 1
A 4 M Cantilever Beam Is Loaded As Shown The Cross Section Is Formed With Two Concentric Circles Of Radii 45 Mm And 35 1 (287.93 KiB) Viewed 20 times

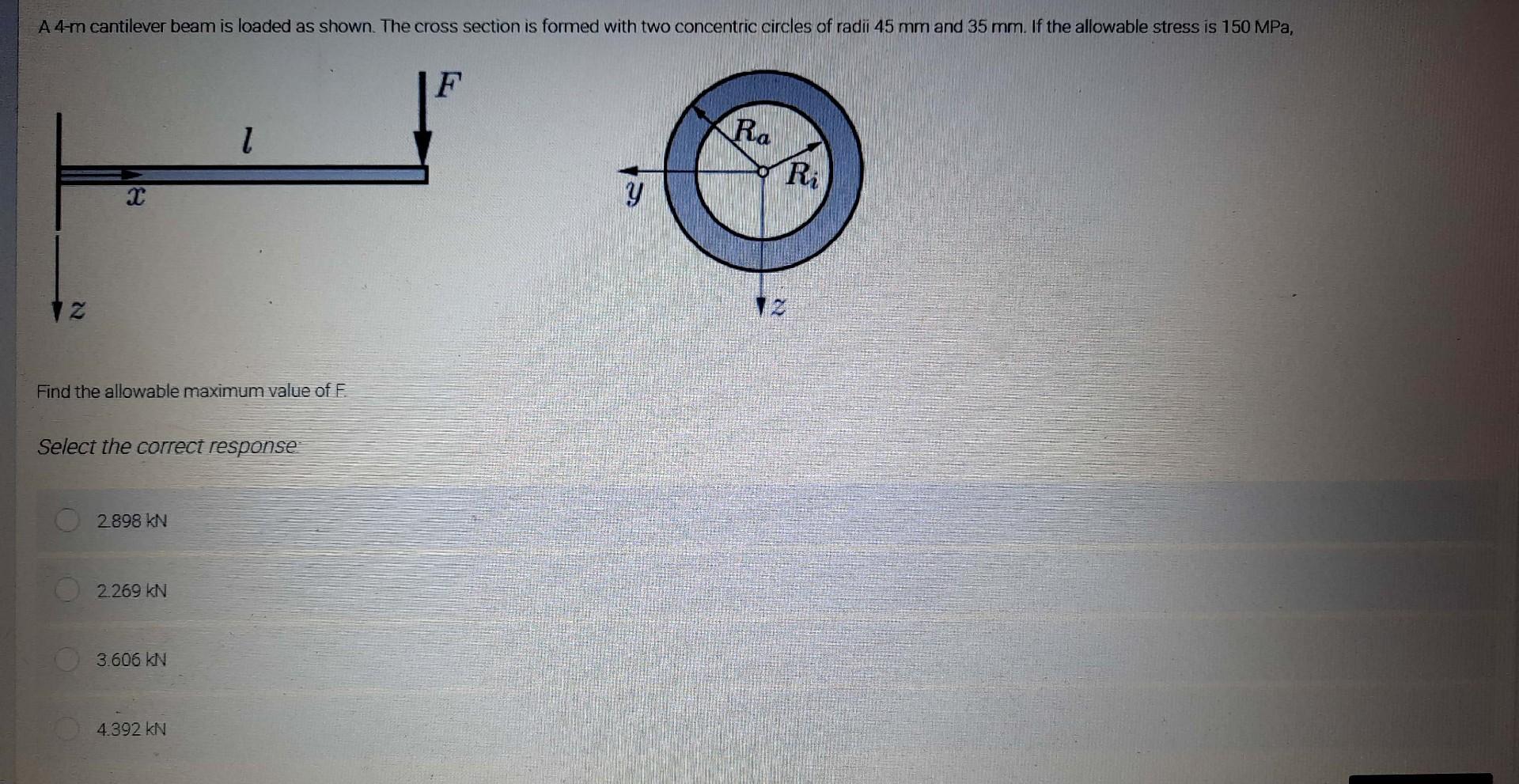

A 4-m cantilever beam is loaded as shown. The cross section is formed with two concentric circles of radii 45 mm and 35 mm. If the allowable stress is 150 MPa, 12 X Find the allowable maximum value of F. Select the correct response 2.898 kN 2.269 KN 1 3.606 kN 4.392 KN F Y Ra Ri
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
