A beam which is composed of concrete and a wide flange steel is subjected to moment M = 1126 kN.m. W Econc=4.1 x 10 MPa

Post by answerhappygod »

A Beam Which Is Composed Of Concrete And A Wide Flange Steel Is Subjected To Moment M 1126 Kn M W Econc 4 1 X 10 Mpa 1
A Beam Which Is Composed Of Concrete And A Wide Flange Steel Is Subjected To Moment M 1126 Kn M W Econc 4 1 X 10 Mpa 1 (148.06 KiB) Viewed 13 times

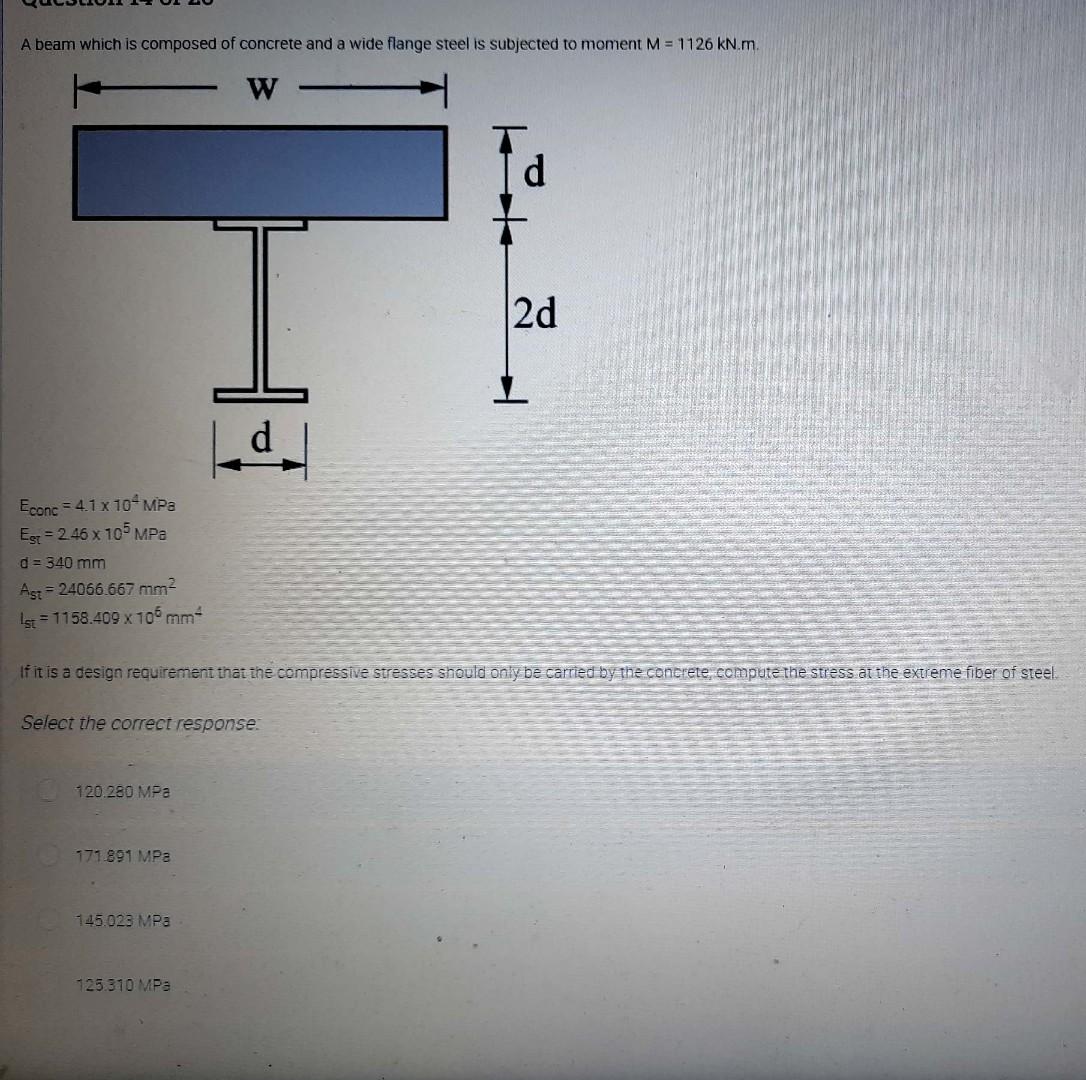

A beam which is composed of concrete and a wide flange steel is subjected to moment M = 1126 kN.m. W Econc=4.1 x 10 MPa Est=2.46 x 105 MPa d = 340 mm Ast=24066.667 mm² 1st = 1158.409 x 105 mm² Select the correct response: 120.280 MPa 171.891 MPa |d| If it is a design requirement that the compressive stresses should only be carried by the concrete, compute the stress at the extreme fiber of steel. 145.023 MP3 125.310 MPa d 2d ㅗ
