A state of stress at a point is the result of two separate actions; one produces the pure shear of 35 MPa shown in figur

[answerhappygod]

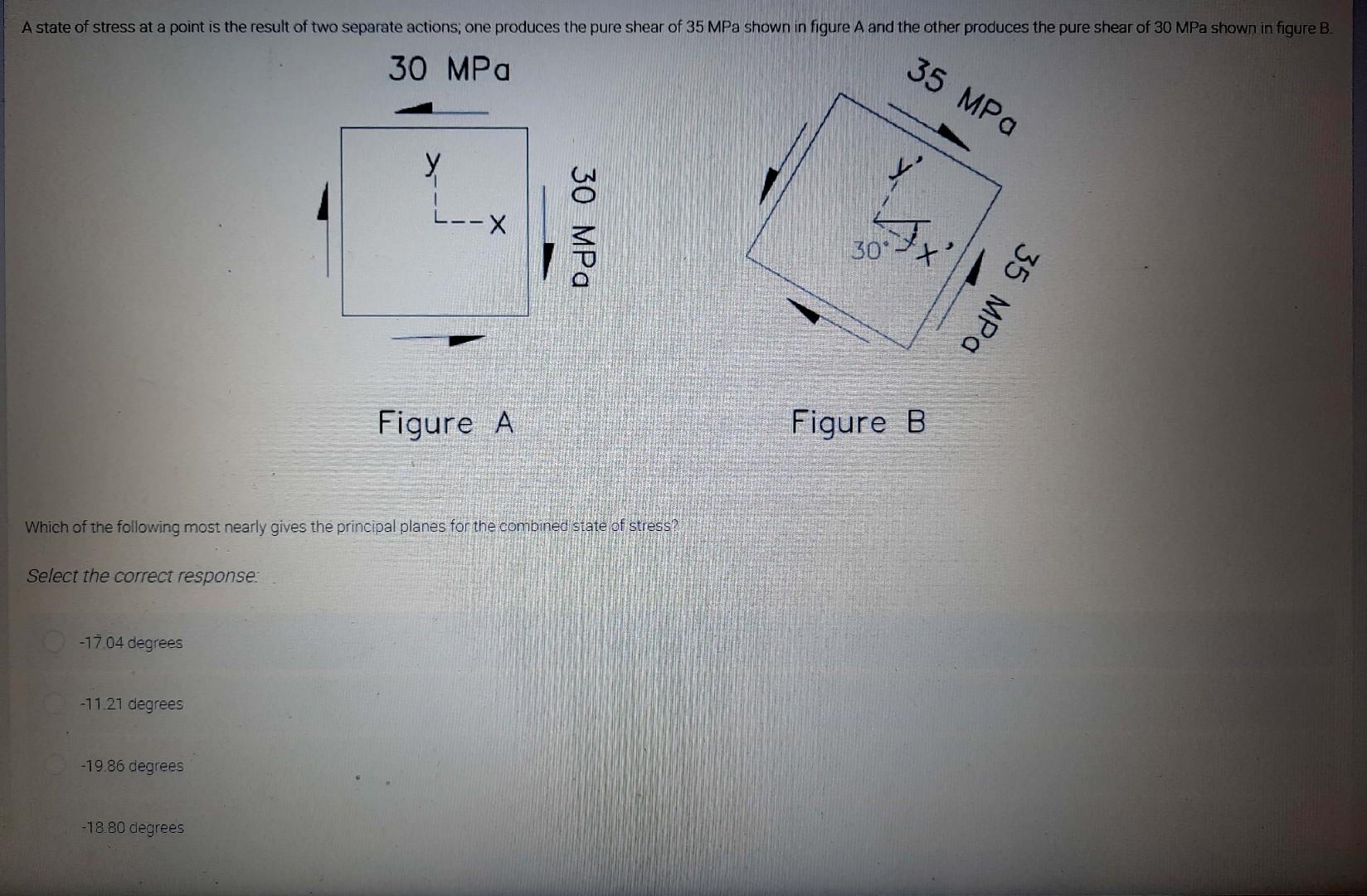

A State Of Stress At A Point Is The Result Of Two Separate Actions One Produces The Pure Shear Of 35 Mpa Shown In Figur 1 (204.47 KiB) Viewed 20 times

A state of stress at a point is the result of two separate actions; one produces the pure shear of 35 MPa shown in figure A and the other produces the pure shear of 30 MPa shown in figure B. 30 MPa Select the correct response: -17.04 degrees -11.21 degrees -19.86 degrees Y Which of the following most nearly gives the principal planes for the combined state of stress? -18.80 degrees L--X Figure A 30 MPa 15 30 35 MPa X Figure B 35 MPa
