ts Les Question 12 of 20 Boom BC, as shown, supports a load of 15 kN which is then mainly supported by cable AB. The boo

[answerhappygod]

Ts Les Question 12 Of 20 Boom Bc As Shown Supports A Load Of 15 Kn Which Is Then Mainly Supported By Cable Ab The Boo 1 (209.17 KiB) Viewed 11 times

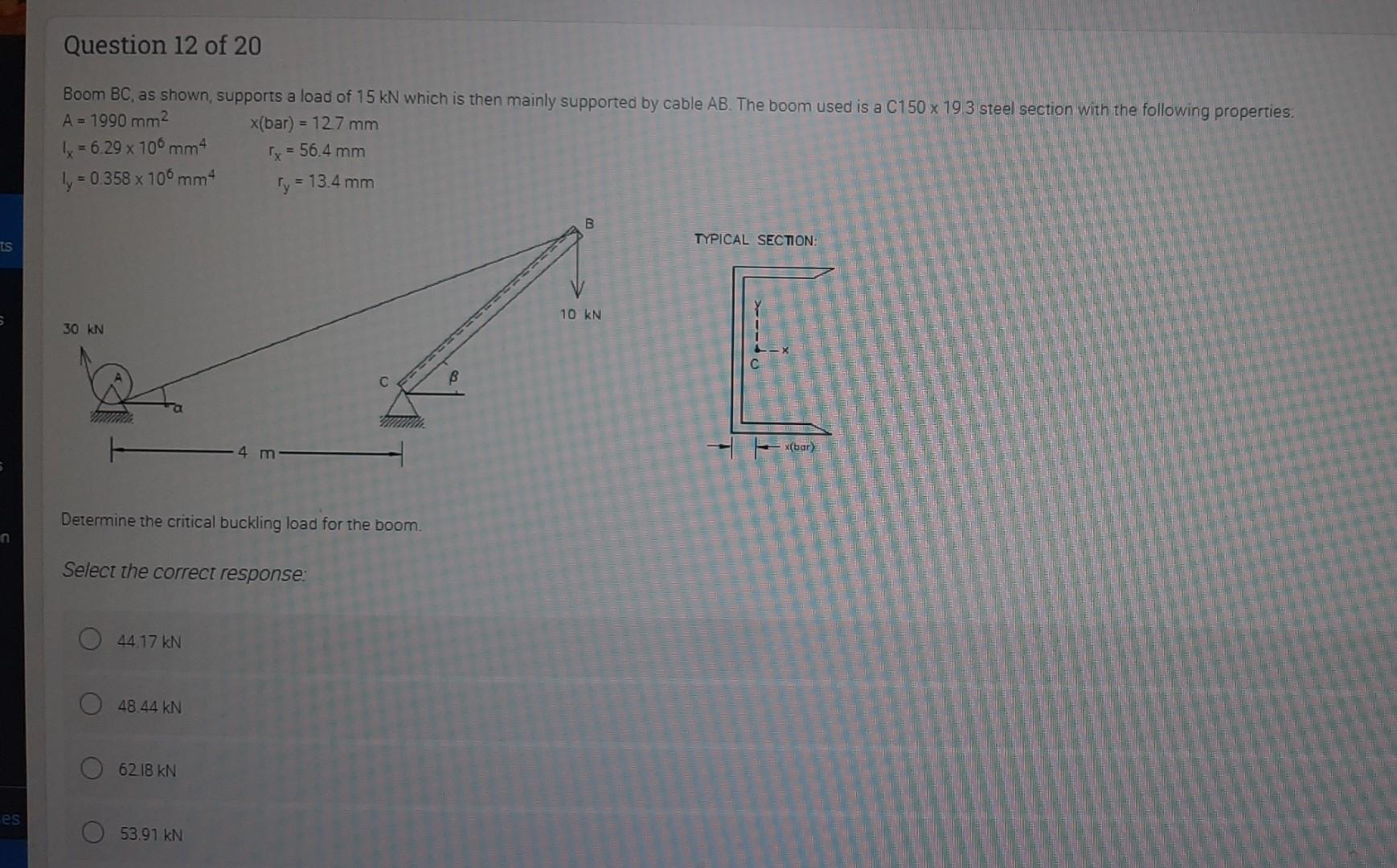

ts Les Question 12 of 20 Boom BC, as shown, supports a load of 15 kN which is then mainly supported by cable AB. The boom used is a C150 x 19.3 steel section with the following properties. A = 1990 mm² x(bar) = 12.7 mm x = 56.4 mm x = 6.29 x 106 mm4 ly = 0.358 x 100 mm4 Ty = 13.4 mm 30 kN Determine the critical buckling load for the boom. Select the correct response: 44.17 kN 48.44 kN 4 m 62.18 KN 53.91 kN 10 kN TYPICAL SECTION: x(bar)
