A small block is 40 mm long, 20 mm high and 10 mm thick. The block is subjected to the forces shown in the figure y A 87

[answerhappygod]

A Small Block Is 40 Mm Long 20 Mm High And 10 Mm Thick The Block Is Subjected To The Forces Shown In The Figure Y A 87 1 (288.15 KiB) Viewed 15 times

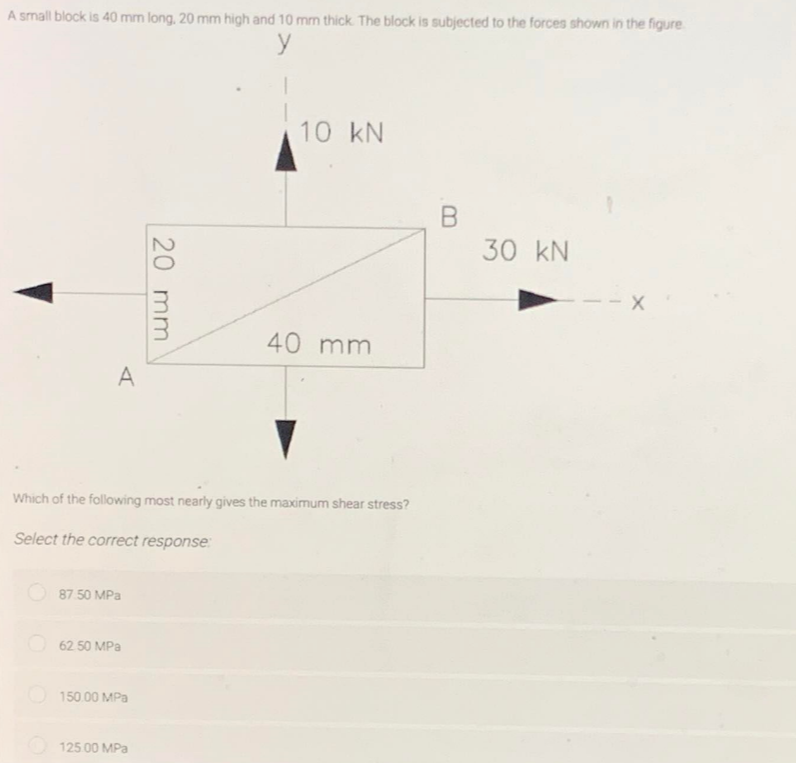

A small block is 40 mm long, 20 mm high and 10 mm thick. The block is subjected to the forces shown in the figure y A 87.50 MPa 62.50 MPa Which of the following most nearly gives the maximum shear stress? Select the correct response: 150.00 MPa 20 mm 125.00 MPa 10 kN 40 mm B 30 kN X
