Question 8 of 20 AC150x 19.3 is used as a boom to support the 15 kN load which is then mainly supported by a cable as sh

Post by answerhappygod »

Question 8 Of 20 Ac150x 19 3 Is Used As A Boom To Support The 15 Kn Load Which Is Then Mainly Supported By A Cable As Sh 1
Question 8 Of 20 Ac150x 19 3 Is Used As A Boom To Support The 15 Kn Load Which Is Then Mainly Supported By A Cable As Sh 1 (24.31 KiB) Viewed 14 times

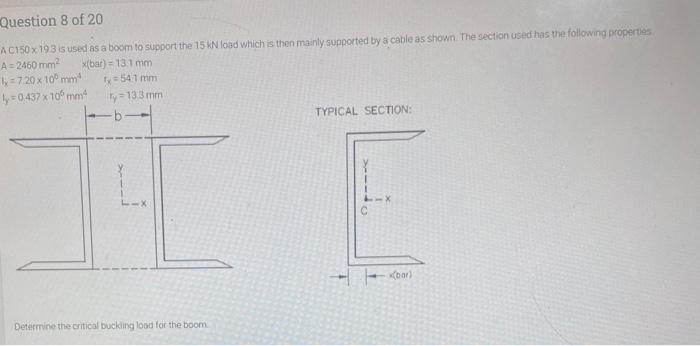

Question 8 of 20 AC150x 19.3 is used as a boom to support the 15 kN load which is then mainly supported by a cable as shown. The section used has the following properties A=2460 mm² =720 x 100 mm ly=0437 x 105 mm4 x(bar) = 13.1 mm ry=541 mm y=133 mm Determine the critical buckling load for the boom TYPICAL SECTION: bar)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
