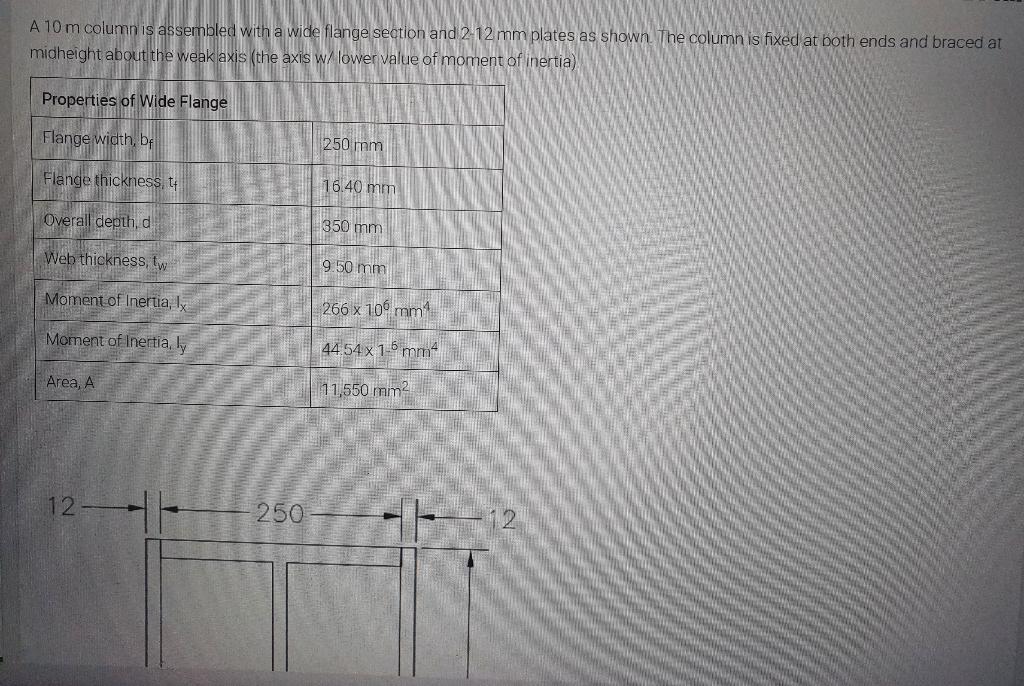

A 10 m column is assembled with a wide flange section and 2-12 mm plates as shown. The column is fixed at both ends and braced at midheight about the weak axis (the axis w/ lower value of moment of inertia) Properties of Wide Flange Flange width, b Flange thickness, t Overall depth, d Web thickness, tw Moment of Inertia, Ix Moment of Inertia, ly Area, A 12 H 250 250 mm 16.40 mm 350 mm 9.50 mm 266 x 10 mm 44.54 x 1-5 mm² 11,550 mm²
Which of the following most nearly gives the effective slenderness ratio about the x-axis? Select the correct response. 30.47 37.66 35.98 350 32.95
