2 Points Question 5 of 20 The initial compressive force of a steel column can be determined by Euler's buckling formula

[answerhappygod]

2 Points Question 5 Of 20 The Initial Compressive Force Of A Steel Column Can Be Determined By Euler S Buckling Formula 1 (11.33 KiB) Viewed 16 times

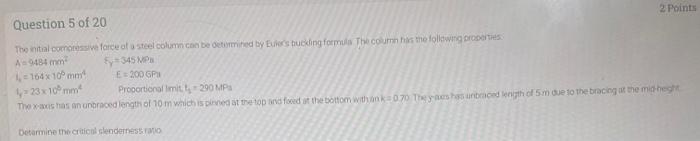

2 Points Question 5 of 20 The initial compressive force of a steel column can be determined by Euler's buckling formula The column has the following properties A=9484 mm² Fy=345 MP 4,164 x 100 mm 4-23x10 mm Proportional limit, t, 290 MPa The x-axis has an unbraced length of 10 m which is pinned at the top and faced at the bottom with ank 0.70 The yes has unbraced length of 5m due to the bracing at the mid-height Determine the critical slenderness ratio E 200 GP
