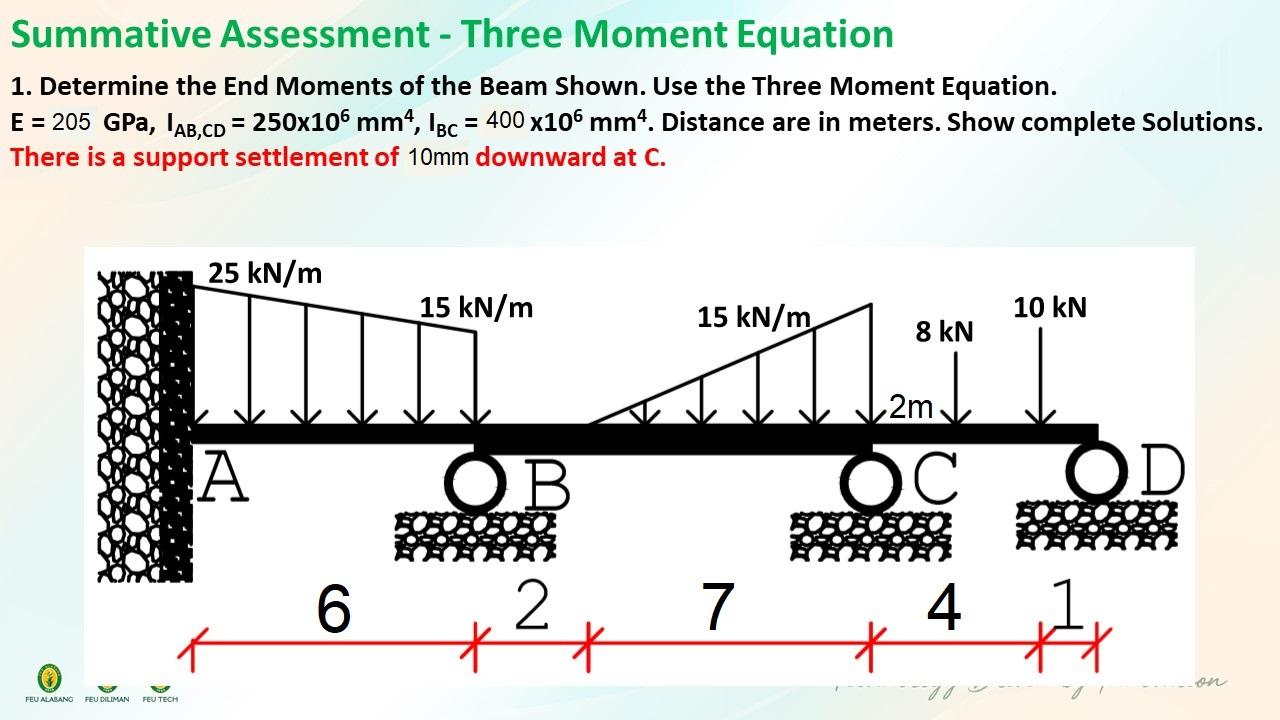

Summative Assessment - Three Moment Equation 1. Determine the End Moments of the Beam Shown. Use the Three Moment Equation. E = 205 GPA, IAB,CD = 250x106 mm², Ibc = 400 x106 mm4. Distance are in meters. Show complete Solutions. There is a support settlement of 10mm downward at C. FEU ALABANG FEU DILIMAN FEU TECH 25 kN/m A 6 15 kN/m * 2 * 15 kN/m 7 8 kN nd 2m OC * 4 00 10 kN #x
1. Solve for the value of the moment reaction at A, in kN-m, rounded off to the nearest whole number. Indicate a negative sign if the direction is counterclockwise. Example -22 2. What is the magnitude of the vertical reaction at A, in kN, rounded off to the nearest whole number? Indicate a negative sign is direction is downward. Example -22 3. What is the magnitude of the vertical reaction at B, in kN, rounded off to the nearest whole number? Indicate a negative sign is direction is downward. Example -22 4. What is the magnitude of the end moment at C, in kN-m, rounded off to the nearest whole number? Indicate the sign if negative. If positive, do not indicate the positive sign.
