- 1 Determine The End Moments Of The Beam Shown Use The Three Moment Equation E 205 Gpa Iab Cd 150x106 Mm4 Ibc 1 (127.1 KiB) Viewed 16 times
2. What is the magnitude of the end moment at B, in kN-m?Indicate the sign if negative. If positive, do not indicate thepositive sign.
3. What is the magnitude of the vertical reaction at C, in kN,rounded off to the nearest whole number? Indicate a negative signif the direction is downwards. Example: -22
4. What is the magnitude of the end moment at C, in kN-m?Indicate the sign if negative. If positive, do not indicate thepositive sign.

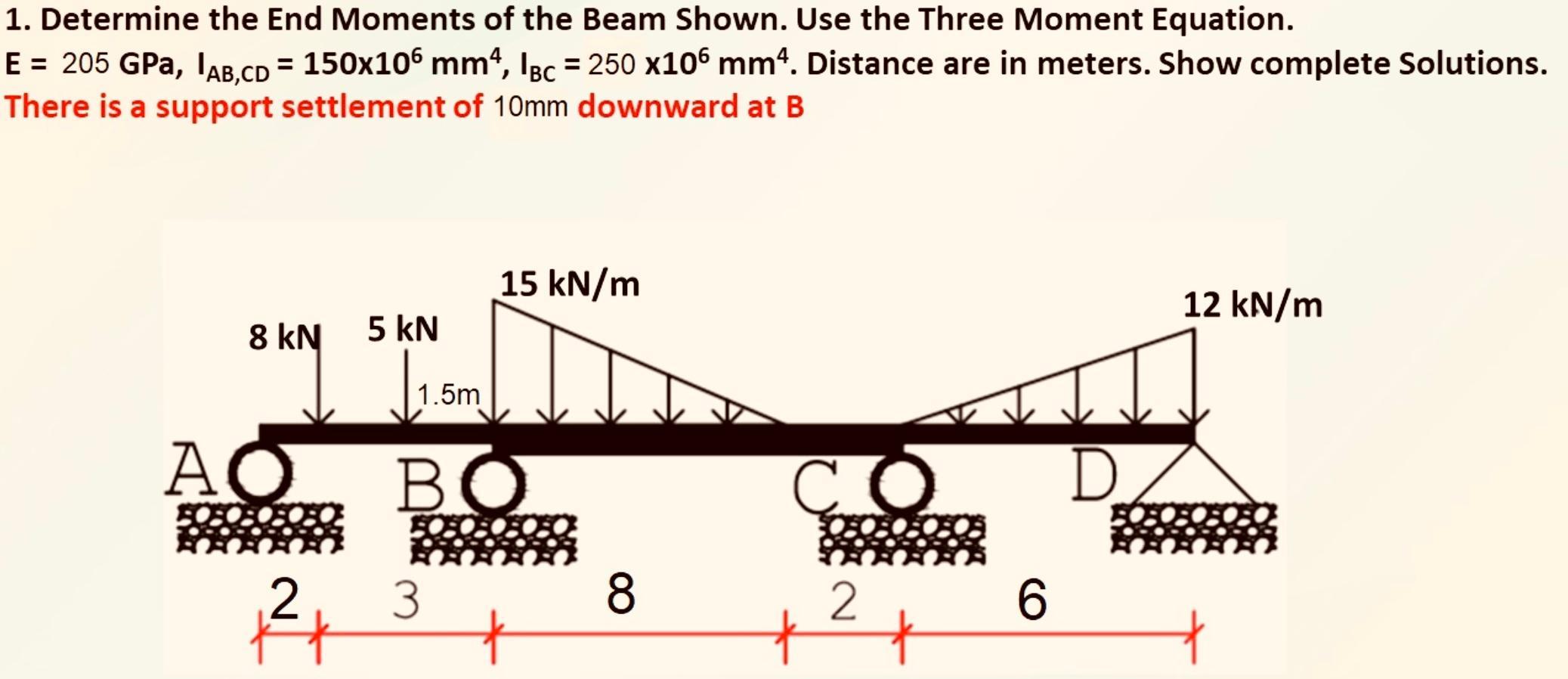

1. Determine the End Moments of the Beam Shown. Use the Three Moment Equation. E = 205 GPA, IAB,CD = 150x106 mm4, IBC = 250 x106 mm4. Distance are in meters. Show complete Solutions. There is a support settlement of 10mm downward at B 8 kN 3 KM AO 2. kN 11.5m 15 kN/m во 3 8 со 2 6 D 12 kN/m
