QUESTION 6 A bracket shown in fig Q6 is riveted to a column by four rivets at points a, b, c, and d. The bracket support

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

QUESTION 6 A bracket shown in fig Q6 is riveted to a column by four rivets at points a, b, c, and d. The bracket support

Post by answerhappygod »

Question 6 A Bracket Shown In Fig Q6 Is Riveted To A Column By Four Rivets At Points A B C And D The Bracket Support 1
Question 6 A Bracket Shown In Fig Q6 Is Riveted To A Column By Four Rivets At Points A B C And D The Bracket Support 1 (37.65 KiB) Viewed 14 times

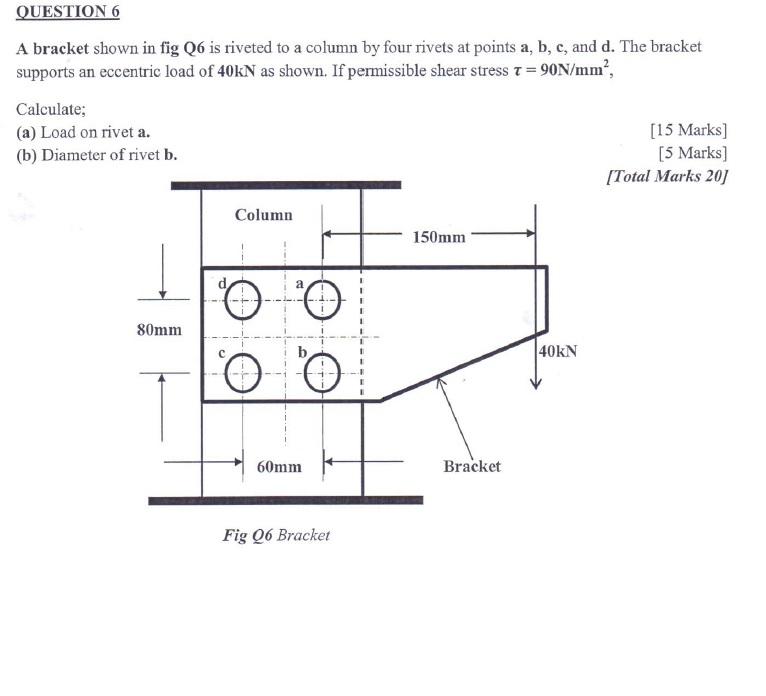

QUESTION 6 A bracket shown in fig Q6 is riveted to a column by four rivets at points a, b, c, and d. The bracket supports an eccentric load of 40KN as shown. If permissible shear stress T = 90N/mm², Calculate; (a) Load on rivet a. (b) Diameter of rivet b. 80mm Column a b 60mm Fig 06 Bracket 150mm Bracket 40KN [15 Marks] [5 Marks] [Total Marks 20]
