Two-part process occur with an expansion from 0.1 to 0.2 m³ at a constant pressure of 150 kPa, which is followed by an e

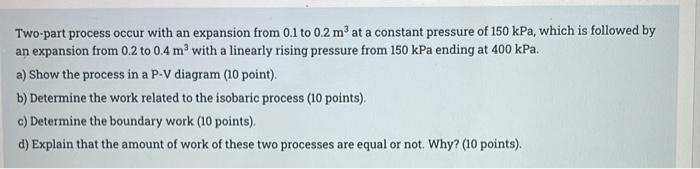

Two-part process occur with an expansion from 0.1 to 0.2 m³ at a constant pressure of 150 kPa, which is followed by an expansion from 0.2 to 0.4 m³ with a linearly rising pressure from 150 kPa ending at 400 kPa. a) Show the process in a P-V diagram (10 point). b) Determine the work related to the isobaric process (10 points). c) Determine the boundary work (10 points). d) Explain that the amount of work of these two processes are equal or not. Why? (10 points).
