2. The following drawing of a turned part contains some mistakes. Which letter(s) mark(s) the mistake(s)? You can assume

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

2. The following drawing of a turned part contains some mistakes. Which letter(s) mark(s) the mistake(s)? You can assume

Post by answerhappygod »

2 The Following Drawing Of A Turned Part Contains Some Mistakes Which Letter S Mark S The Mistake S You Can Assume 1
2 The Following Drawing Of A Turned Part Contains Some Mistakes Which Letter S Mark S The Mistake S You Can Assume 1 (84.09 KiB) Viewed 22 times

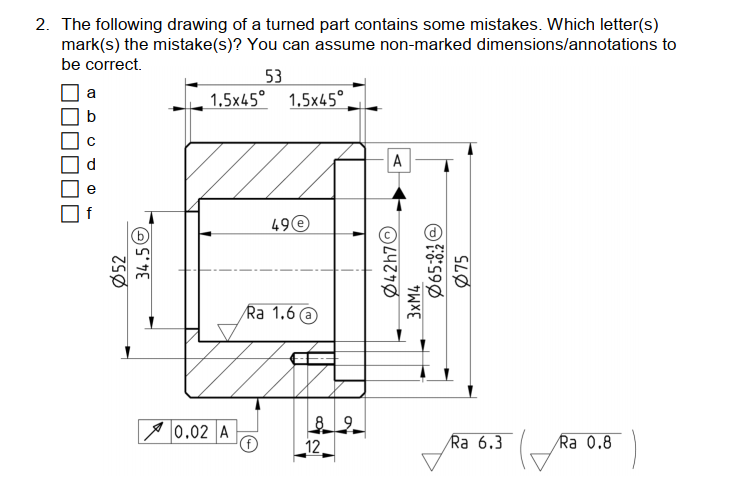

2. The following drawing of a turned part contains some mistakes. Which letter(s) mark(s) the mistake(s)? You can assume non-marked dimensions/annotations to be correct. 53 a Ø52 ⒸS*HE 1.5x45 1.5x45° 7 0.02 A 49Ⓒ Ra 1.6 @ 8 9. 12. A Ø42h7Ⓒ 3xM4 8590 SLØ Ra 6.3 Ra 0.8
