AC150 x 19.3 is used as a boom to support the 15 kN load which is then mainly supported by a cable as shown. The section

Post by answerhappygod »

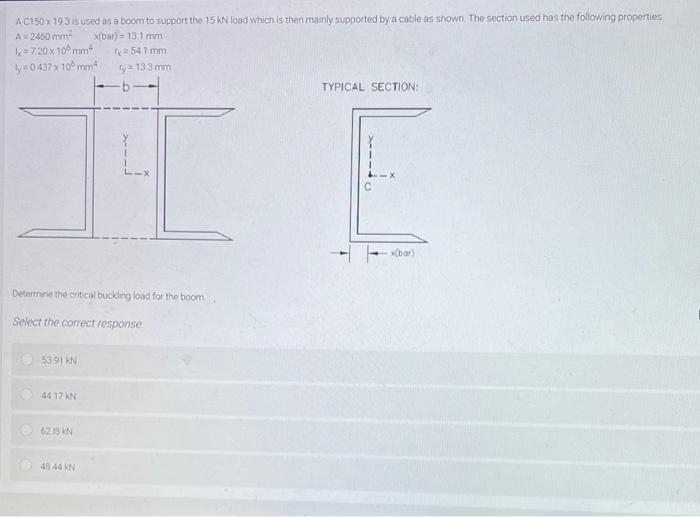

Ac150 X 19 3 Is Used As A Boom To Support The 15 Kn Load Which Is Then Mainly Supported By A Cable As Shown The Section 1
Ac150 X 19 3 Is Used As A Boom To Support The 15 Kn Load Which Is Then Mainly Supported By A Cable As Shown The Section 1 (28.31 KiB) Viewed 14 times
AC150 x 19.3 is used as a boom to support the 15 kN load which is then mainly supported by a cable as shown. The section used has the following properties. A = 2460 mm² x(bar) = 13.1 mm ly=720 x 10 mm- Ly=0.437 x 100 mm Determine the critical buckling load for the boom Select the correct response 53 91 KN 44.17 kN 6218 KN Tx=541 mm fy=13.3mm 48.44 KN TYPICAL SECTION: x(bar)
