Given a linear oε-diagram of concrete and the cross-section of a concrete beam. fcd 0.9% 00 Assumptions: Steel B500; fyd

Post by answerhappygod »

1
1 (67.58 KiB) Viewed 16 times

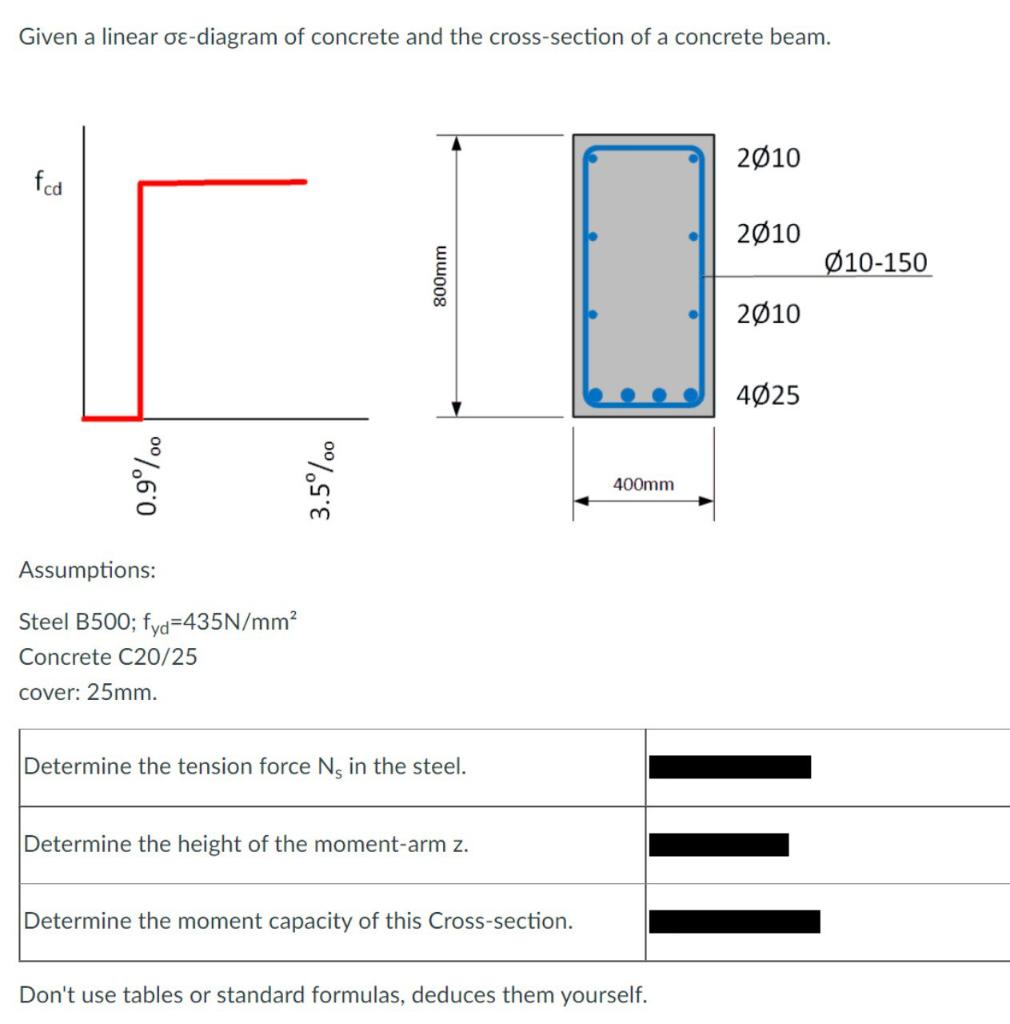

Given a linear oε-diagram of concrete and the cross-section of a concrete beam. fcd 0.9% 00 Assumptions: Steel B500; fyd-435N/mm² Concrete C20/25 cover: 25mm. 3.5%00 800mm Determine the tension force N, in the steel. Determine the height of the moment-arm z. Determine the moment capacity of this Cross-section. 400mm Don't use tables or standard formulas, deduces them yourself. 2010 2010 2010 4025 Ø10-150
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
