A cantilever beam with length L cames a concentrated load of P at its free end. The beam is tapered with diameters of D

Post by answerhappygod »

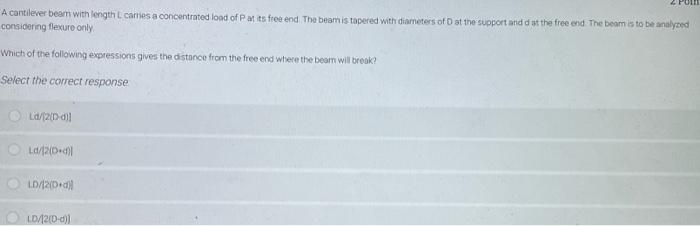

A Cantilever Beam With Length L Cames A Concentrated Load Of P At Its Free End The Beam Is Tapered With Diameters Of D 1
A Cantilever Beam With Length L Cames A Concentrated Load Of P At Its Free End The Beam Is Tapered With Diameters Of D 1 (13.72 KiB) Viewed 14 times
A cantilever beam with length L cames a concentrated load of P at its free end. The beam is tapered with diameters of D at the support and d at the free end. The beam is to be analyzed considering flexure only Which of the following expressions gives the distance from the free end where the beam will break? Select the correct response Ld/[2(D-d)] Ld/12(D+d) LD/12(D+d) 2 POIN OLD/12(0-0)]
