Kerosine at 20°C flows through the pump in the figure given below at 2.3 ft³/s. Head losses between 1 and 2 are 8 ft, an
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Kerosine at 20°C flows through the pump in the figure given below at 2.3 ft³/s. Head losses between 1 and 2 are 8 ft, an

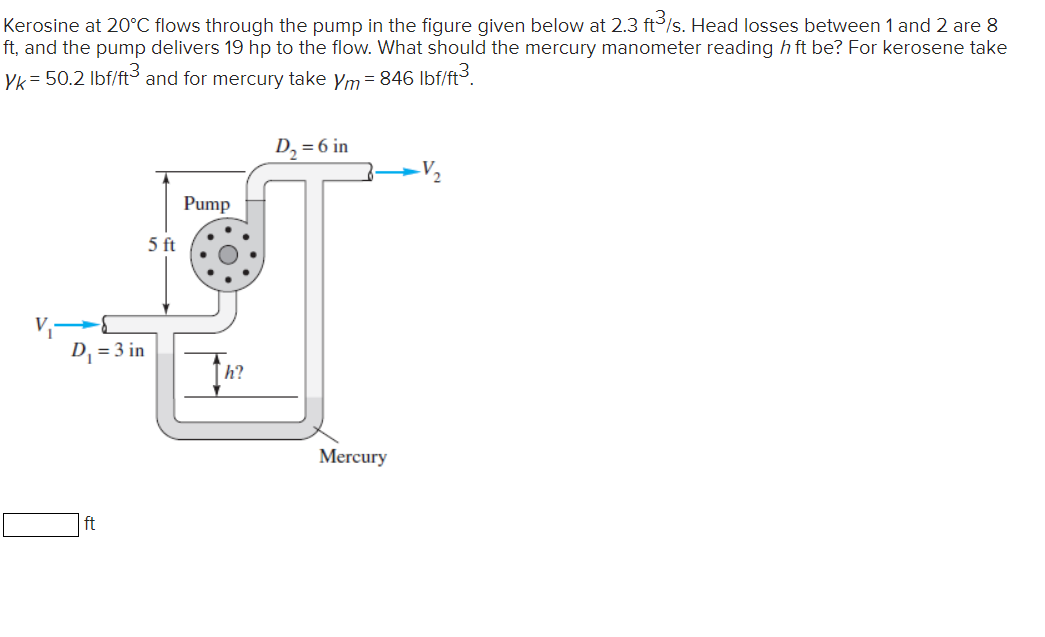

Kerosine at 20°C flows through the pump in the figure given below at 2.3 ft³/s. Head losses between 1 and 2 are 8 ft, and the pump delivers 19 hp to the flow. What should the mercury manometer reading hft be? For kerosene take Yk= 50.2 lbf/ft³ and for mercury take Ym= 846 lbf/ft³. D₁ = 3 in 5 ft Pump h? D₂ = 6 in Mercury
