An 8 m simple beam is loaded with a 228 kN point load at the first third of its length The cross section of the beam is

[answerhappygod]

An 8 M Simple Beam Is Loaded With A 228 Kn Point Load At The First Third Of Its Length The Cross Section Of The Beam Is 1 (22.89 KiB) Viewed 23 times

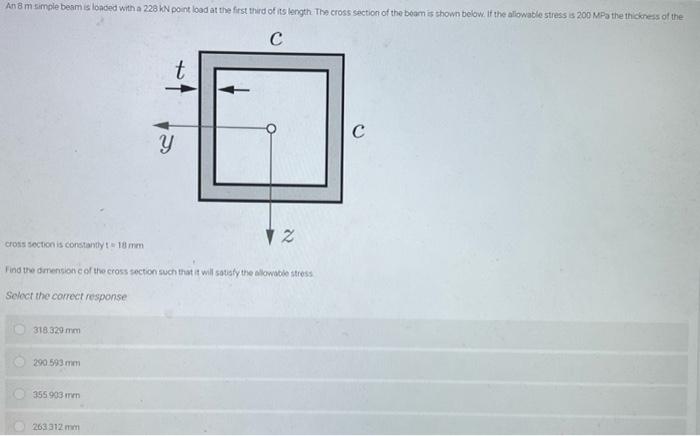

An 8 m simple beam is loaded with a 228 kN point load at the first third of its length The cross section of the beam is shown below. If the allowable stress is 200 MPa the thickness of the C Select the correct response 318.329 mm cross section is constantly t 18 mm Find the dimension c of the cross section such that it will satisfy the allowable stress 290.593 mm 355 903 mm t 263312mm Y 12 C
