6) Given a table with enthalpy of superheated water, at selected temperature & pressure: h (kJ/kg)| P=200kPa | P=300kPa

[answerhappygod]

6 Given A Table With Enthalpy Of Superheated Water At Selected Temperature Pressure H Kj Kg P 200kpa P 300kpa 1 (32.29 KiB) Viewed 15 times

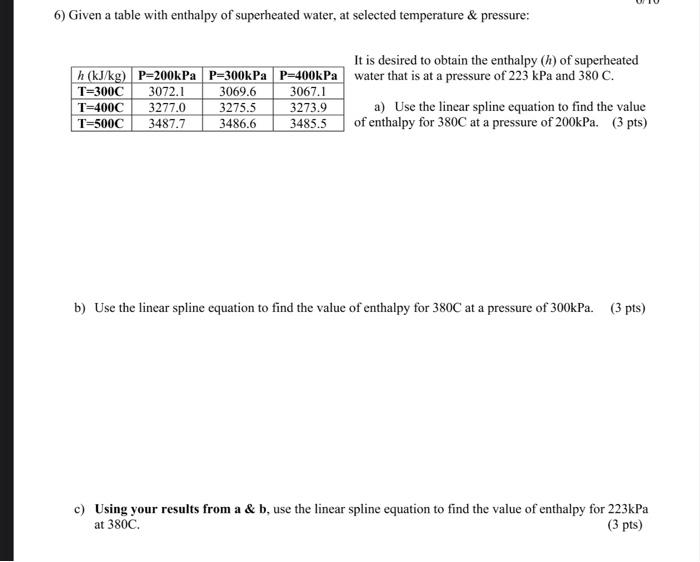

6) Given a table with enthalpy of superheated water, at selected temperature & pressure: h (kJ/kg)| P=200kPa | P=300kPa | P-400kPa T-300C 3072.1 3069.6 3067.1 3273.9 T=400C 3277.0 T-500C 3487.7 It is desired to obtain the enthalpy (h) of superheated water that is at a pressure of 223 kPa and 380 C. 3275.5 a) Use the linear spline equation to find the value 3486.6 3485.5 of enthalpy for 380C at a pressure of 200kPa. (3 pts) b) Use the linear spline equation to find the value of enthalpy for 380C at a pressure of 300kPa. (3 pts) c) Using your results from a & b, use the linear spline equation to find the value of enthalpy for 223kPa at 380C. (3 pts)
