Compute the resonant frequency of this circuit. Identify the type of filter that is implemented with port 1 as input and

Post by answerhappygod »

Compute The Resonant Frequency Of This Circuit Identify The Type Of Filter That Is Implemented With Port 1 As Input And 1
Compute The Resonant Frequency Of This Circuit Identify The Type Of Filter That Is Implemented With Port 1 As Input And 1 (42.7 KiB) Viewed 13 times

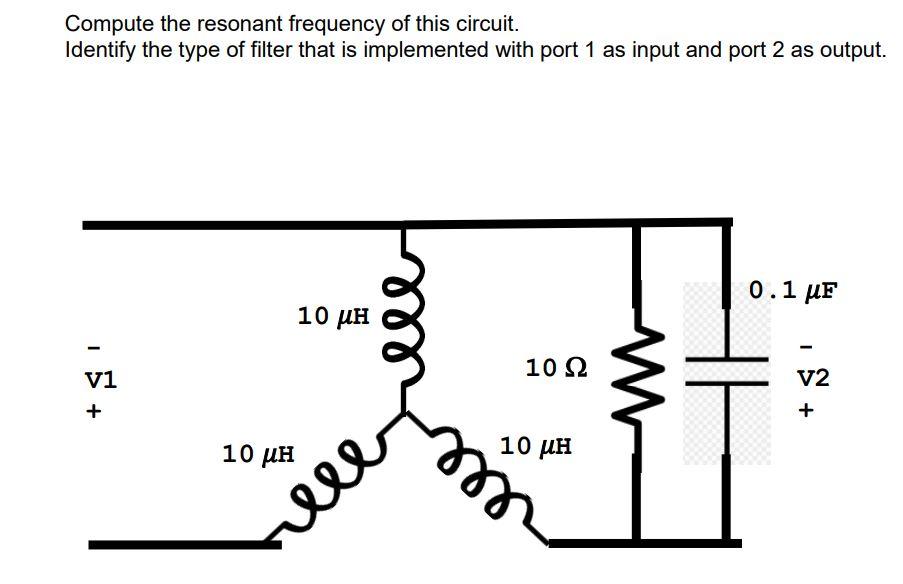

Compute the resonant frequency of this circuit. Identify the type of filter that is implemented with port 1 as input and port 2 as output. I V1 + 10 ΜΗ 10 μΗ ле m 10 Q2 10 μΗ M 0.1 με I V2 +
