15. A junction diode is supplied with a constant large current I (I » Is) and has a forward voltage drop of 0.7 V (Fig.

[answerhappygod]

15 A Junction Diode Is Supplied With A Constant Large Current I I Is And Has A Forward Voltage Drop Of 0 7 V Fig 1 (51.53 KiB) Viewed 24 times

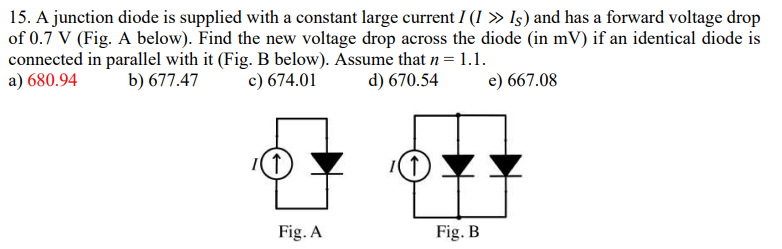

15. A junction diode is supplied with a constant large current I (I » Is) and has a forward voltage drop of 0.7 V (Fig. A below). Find the new voltage drop across the diode (in mV) if an identical diode is connected in parallel with it (Fig. B below). Assume that n = 1.1. a) 680.94 b) 677.47 c) 674.01 d) 670.54 e) 667.08 ↑ Fig. A Fig. B
