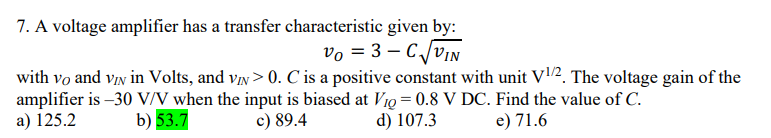

- 7 A Voltage Amplifier Has A Transfer Characteristic Given By Vo 3 C Vin With Vo And Vin In Volts And Vin 0 C Is 1 (36.12 KiB) Viewed 16 times
7. A voltage amplifier has a transfer characteristic given by: Vo = 3-C√ √VIN with vo and VIN in Volts, and VIN> 0. C is
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
7. A voltage amplifier has a transfer characteristic given by: Vo = 3-C√ √VIN with vo and VIN in Volts, and VIN> 0. C is
7. A voltage amplifier has a transfer characteristic given by: Vo = 3-C√ √VIN with vo and VIN in Volts, and VIN> 0. C is a positive constant with unit V¹/2. The voltage gain of the amplifier is -30 V/V when the input is biased at V₁ = 0.8 V DC. Find the value of C. b) 53.7 c) 89.4 d) 107.3 e) 71.6 a) 125.2
