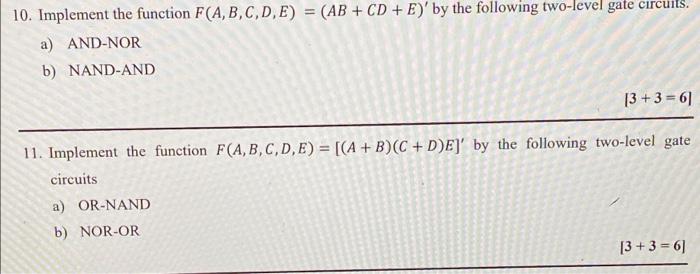

- 10 Implement The Function F A B C D E Ab Cd E By The Following Two Level Gate Circuits A And Nor B Nand 1 (30.86 KiB) Viewed 13 times
10. Implement the function F(A, B, C, D, E) = (AB+ CD + E)' by the following two-level gate circuits. a) AND-NOR b) NAND
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
10. Implement the function F(A, B, C, D, E) = (AB+ CD + E)' by the following two-level gate circuits. a) AND-NOR b) NAND
10. Implement the function F(A, B, C, D, E) = (AB+ CD + E)' by the following two-level gate circuits. a) AND-NOR b) NAND-AND [3+3=6] 11. Implement the function F(A, B, C, D, E) = [(A + B)(C+D)E]' by the following two-level gate circuits a) OR-NAND b) OR-OR [3+3=6]
