8. Design an 8-to-1 MUX using only 2-to-1 MUX. Clearly label the MSB and LSB in the select lines. [6] 9. Consider the fu

[answerhappygod]

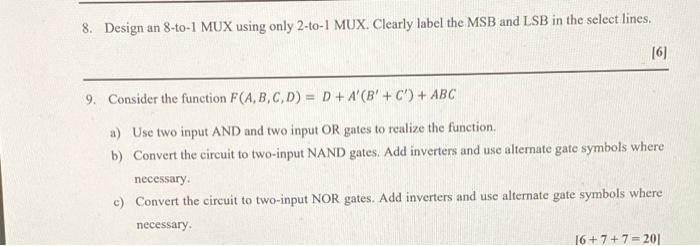

8 Design An 8 To 1 Mux Using Only 2 To 1 Mux Clearly Label The Msb And Lsb In The Select Lines 6 9 Consider The Fu 1 (26.67 KiB) Viewed 21 times

8. Design an 8-to-1 MUX using only 2-to-1 MUX. Clearly label the MSB and LSB in the select lines. [6] 9. Consider the function F(A, B, C, D) = D + A'(B' + C') + ABC a) Use two input AND and two input OR gates to realize the function. b) Convert the circuit to two-input NAND gates. Add inverters and use alternate gate symbols where necessary. c) Convert the circuit to two-input NOR gates. Add inverters and use alternate gate symbols where necessary. 16+7+7=201
