8.10 Draw the timing diagram for V and Z for the circuit. Assume that the AND gate has a delay of 10 ns and the OR gate

[answerhappygod]

8 10 Draw The Timing Diagram For V And Z For The Circuit Assume That The And Gate Has A Delay Of 10 Ns And The Or Gate 1 (47.19 KiB) Viewed 17 times

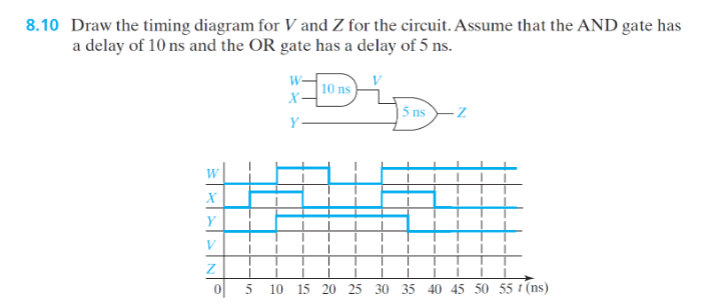

8.10 Draw the timing diagram for V and Z for the circuit. Assume that the AND gate has a delay of 10 ns and the OR gate has a delay of 5 ns. W X Y V Z 0 10 ns 5 ns Z 5 10 15 20 25 30 35 40 45 50 55 t (ns)
