Q4. For the circuit shown in figure 4, the switch was open for a long time and then is closed at t = 0. Determine R₁ and

Post by answerhappygod »

Q4 For The Circuit Shown In Figure 4 The Switch Was Open For A Long Time And Then Is Closed At T 0 Determine R And 1
Q4 For The Circuit Shown In Figure 4 The Switch Was Open For A Long Time And Then Is Closed At T 0 Determine R And 1 (21.48 KiB) Viewed 26 times

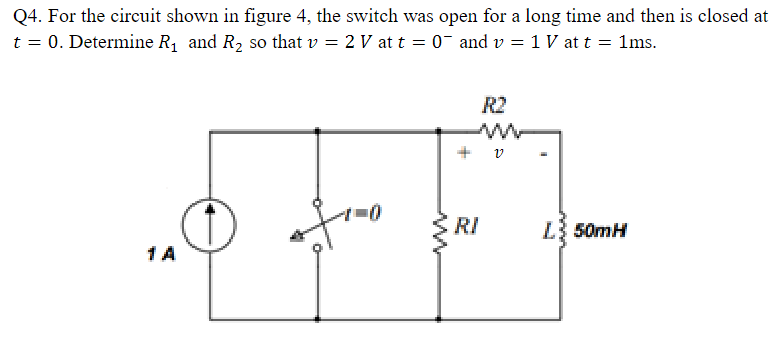

Q4. For the circuit shown in figure 4, the switch was open for a long time and then is closed at t = 0. Determine R₁ and R₂ so that v = 2 V at t = 0¯ and v = 1 V at t = 1ms. 1 A RI R2 ט L 50mH
