b) For the system in Figure 2; i) ii) Compute the damping ratio, natural frequency, percent overshoot, settling time, pe

Post by answerhappygod »

B For The System In Figure 2 I Ii Compute The Damping Ratio Natural Frequency Percent Overshoot Settling Time Pe 1
B For The System In Figure 2 I Ii Compute The Damping Ratio Natural Frequency Percent Overshoot Settling Time Pe 1 (74.13 KiB) Viewed 20 times

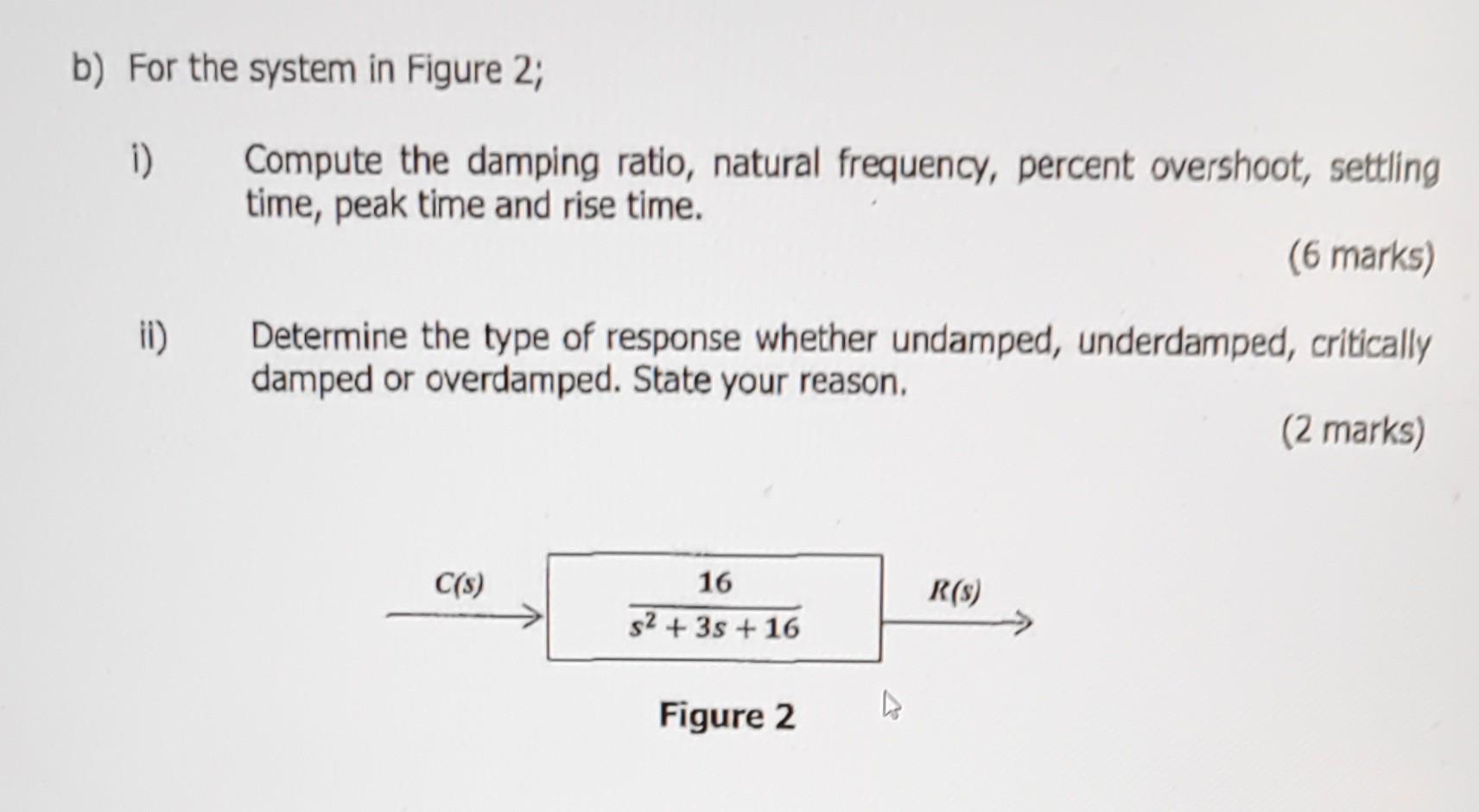

b) For the system in Figure 2; i) ii) Compute the damping ratio, natural frequency, percent overshoot, settling time, peak time and rise time. (6 marks) Determine the type of response whether undamped, underdamped, critically damped or overdamped. State your reason. (2 marks) C(s) 16 s²+3s +16 Figure 2 4 R(s)
