Daniel Bostwick: Attempt 1 Question 9 (1 point) A capacitor with an XC of 325 2 and a resistor (RL) of 420 2 are in para

Post by answerhappygod »

Daniel Bostwick Attempt 1 Question 9 1 Point A Capacitor With An Xc Of 325 2 And A Resistor Rl Of 420 2 Are In Para 1
Daniel Bostwick Attempt 1 Question 9 1 Point A Capacitor With An Xc Of 325 2 And A Resistor Rl Of 420 2 Are In Para 1 (215.15 KiB) Viewed 17 times

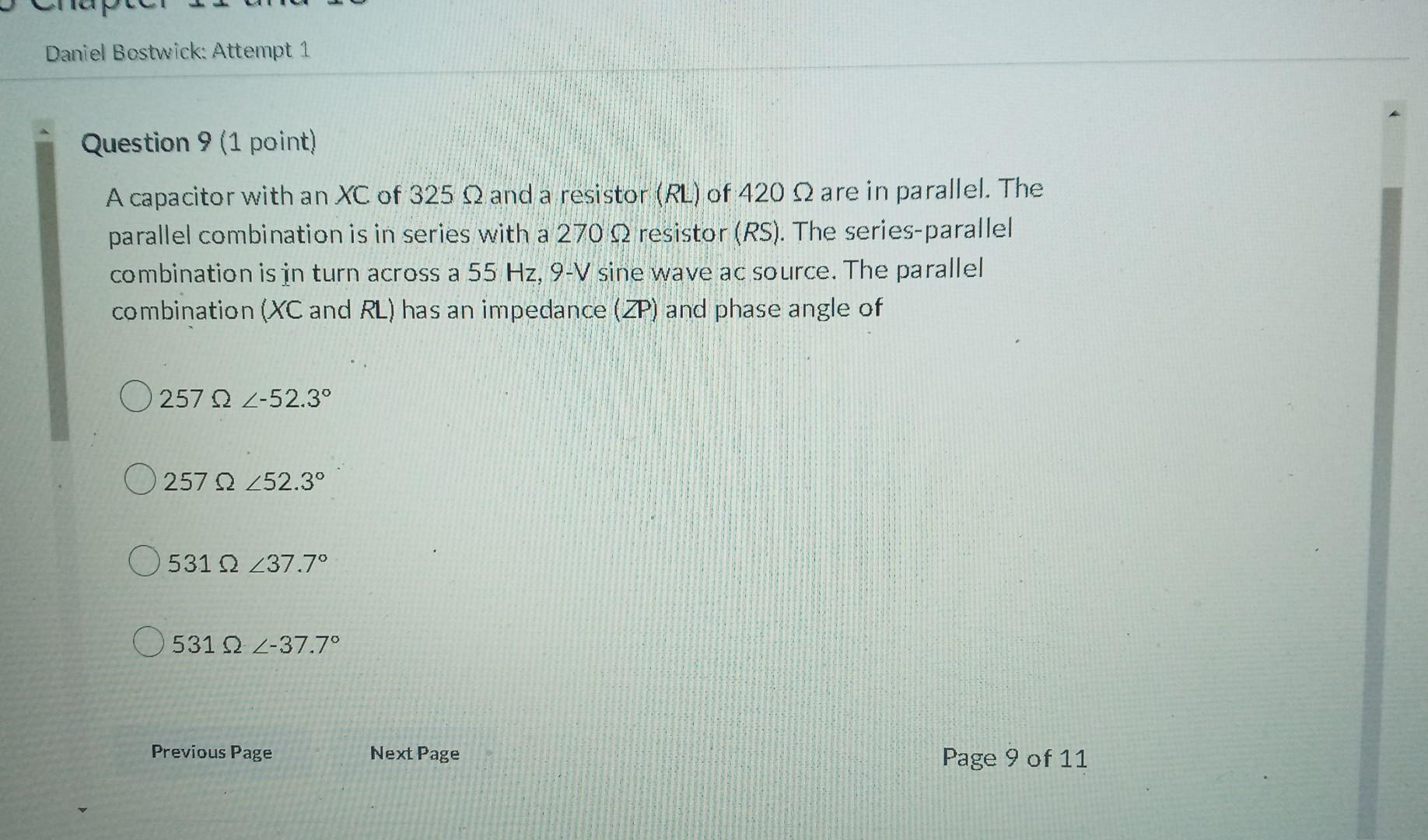

Daniel Bostwick: Attempt 1 Question 9 (1 point) A capacitor with an XC of 325 2 and a resistor (RL) of 420 2 are in parallel. The parallel combination is in series with a 270 2 resistor (RS). The series-parallel combination is in turn across a 55 Hz, 9-V sine wave ac source. The parallel combination (XC and RL) has an impedance (ZP) and phase angle of 257 2-52.3° 257 Q 252.3° 531 22 237.7° 5312-37.7° Previous Page Next Page Page 9 of 11
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
