5. (15 pts) Determine the transfer function Vo(s)/Vi(s) of the system below. Show the process/solution. R₂ C₁ Vi(s) o +

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

5. (15 pts) Determine the transfer function Vo(s)/Vi(s) of the system below. Show the process/solution. R₂ C₁ Vi(s) o +

Post by answerhappygod »

5 15 Pts Determine The Transfer Function Vo S Vi S Of The System Below Show The Process Solution R C Vi S O 1
5 15 Pts Determine The Transfer Function Vo S Vi S Of The System Below Show The Process Solution R C Vi S O 1 (79.68 KiB) Viewed 16 times

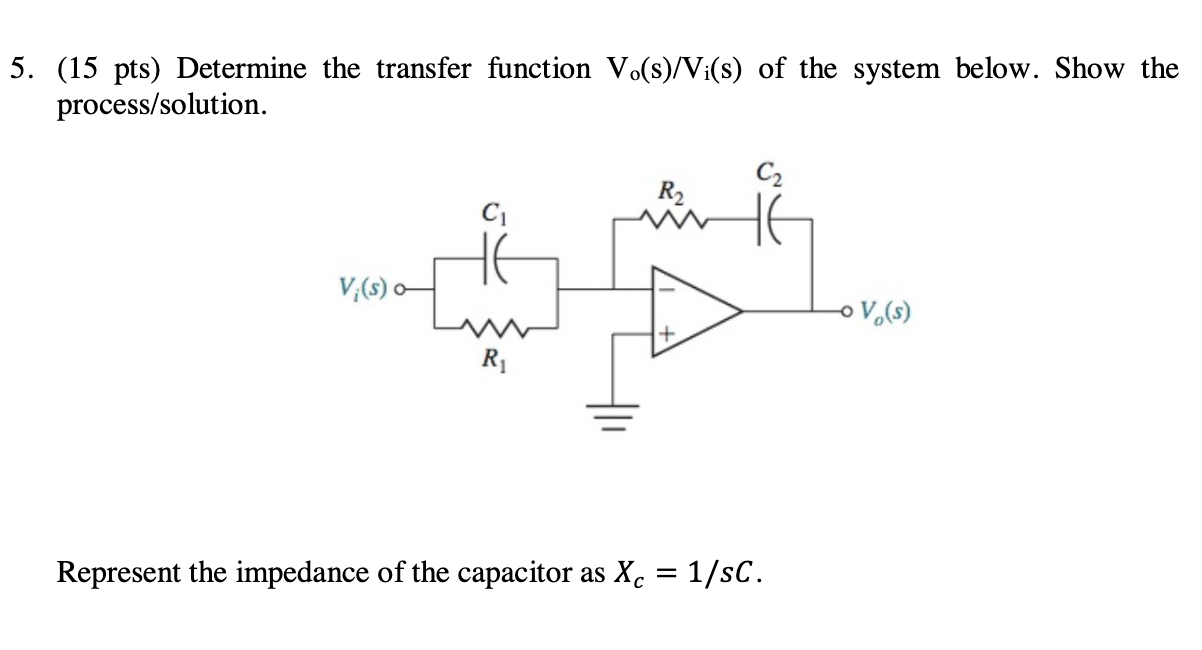

5. (15 pts) Determine the transfer function Vo(s)/Vi(s) of the system below. Show the process/solution. R₂ C₁ Vi(s) o + R₁ C₂ Represent the impedance of the capacitor as Xc = 1/sC. Vo(s)
