1.- Consider the system shown in the figure below. Obtain the output C,(S) when the input r(t) is a unit-step displaceme

Post by answerhappygod »

1 Consider The System Shown In The Figure Below Obtain The Output C S When The Input R T Is A Unit Step Displaceme 1
1 Consider The System Shown In The Figure Below Obtain The Output C S When The Input R T Is A Unit Step Displaceme 1 (34.19 KiB) Viewed 15 times

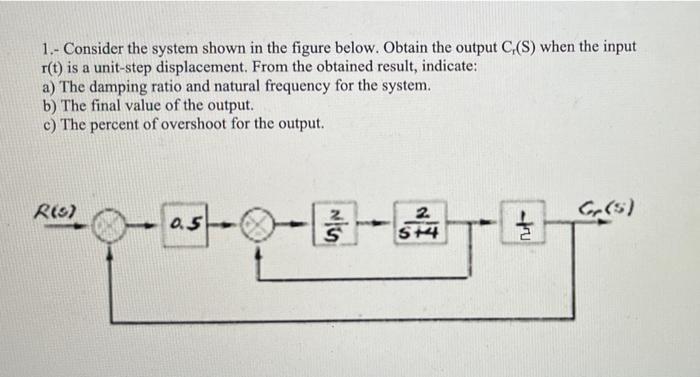

1.- Consider the system shown in the figure below. Obtain the output C,(S) when the input r(t) is a unit-step displacement. From the obtained result, indicate: a) The damping ratio and natural frequency for the system. b) The final value of the output. c) The percent of overshoot for the output. R(S) 0.5 NIG 2 5+4 1/2
