Given the MUX Calculate (0011 0110) XOR (0010 0100), Y output AND simplify using the karnaugh map

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Given the MUX Calculate (0011 0110) XOR (0010 0100), Y output AND simplify using the karnaugh map

Post by answerhappygod »

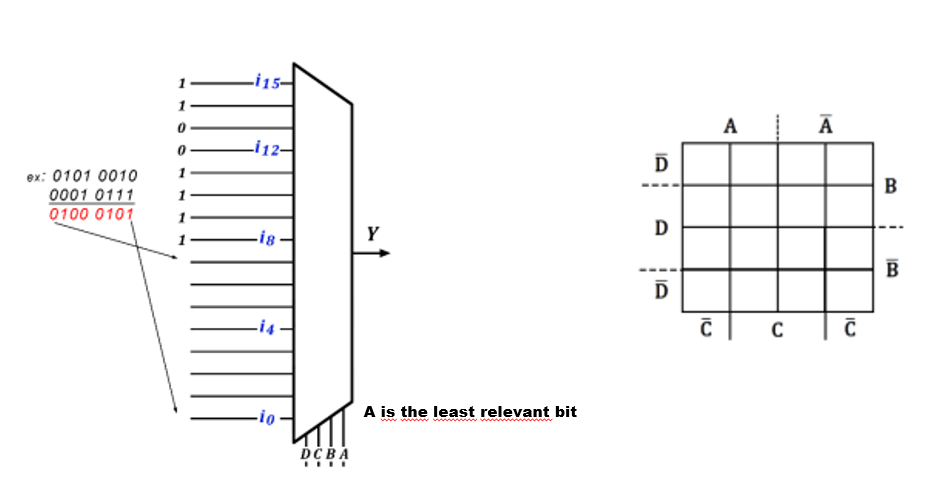

Given the MUX
Given The Mux Calculate 0011 0110 Xor 0010 0100 Y Output And Simplify Using The Karnaugh Map 1
Given The Mux Calculate 0011 0110 Xor 0010 0100 Y Output And Simplify Using The Karnaugh Map 1 (45.56 KiB) Viewed 9 times
Calculate (0011 0110) XOR (0010 0100), Y output AND simplifyusing the karnaugh map
ex: 0101 0010 0001 0111 0100 0101 1 0 0 1 1 1 -115- -112- ig -is -io DCBA Y A is the least relevant bit D D D C A C A IC B B
