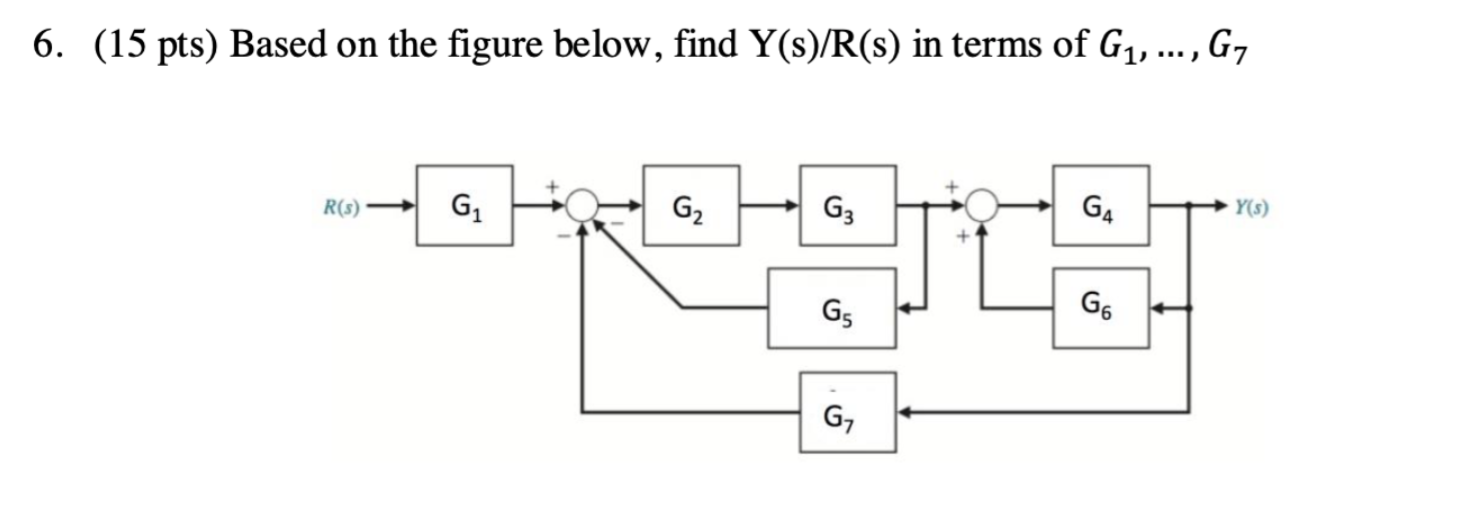

6. (15 pts) Based on the figure below, find Y(s)/R(s) in terms of G₁, ..., G7 R(s) G₁ G₂ G3 G5 G₁ G4 G6 Y(s)
