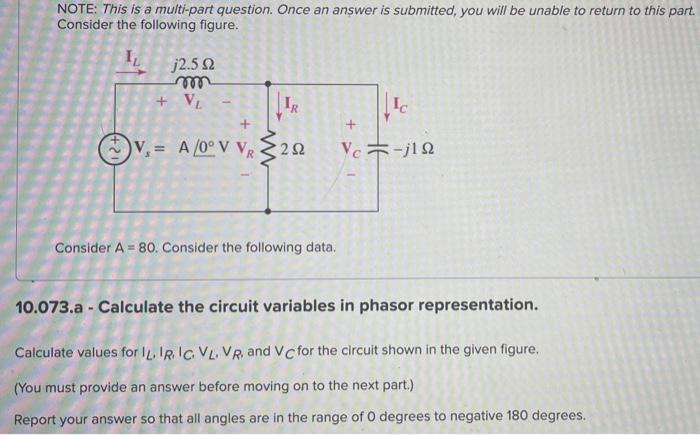

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider the following figure. L₂ j2.5 Ω + VL V,= A/0° V VR 252 Consider A = 80. Consider the following data. Ic Ye-j19 10.073.a - Calculate the circuit variables in phasor representation. Calculate values for IL. IR. IC. VL. VR. and VC for the circuit shown in the given figure. (You must provide an answer before moving on to the next part.) Report your answer so that all angles are in the range of 0 degrees to negative 180 degrees.

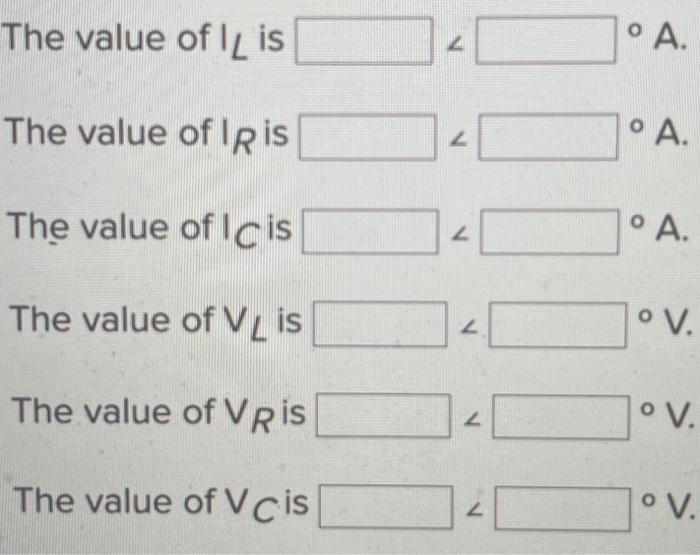

The value of lis The value of Ig is The value of Icis The value of VL is The value of VR is The value of Vcis Z L L 2 L O ° A. ° A. ° A. Jov. V. ° V. o V.
