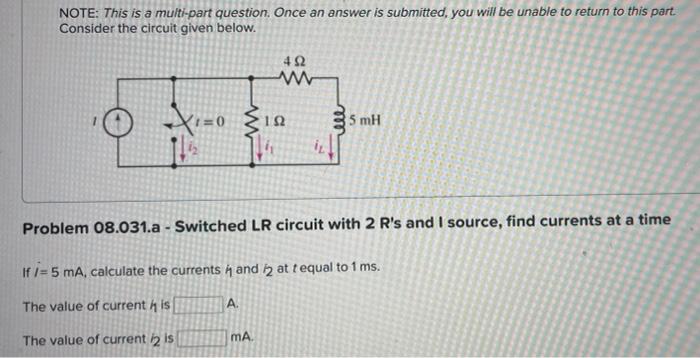

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider the circuit given below. 0 А. 492 www mA. 192 Problem 08.031.a - Switched LR circuit with 2 R's and I source, find currents at a time If /= 5 mA, calculate the currents and 2 at t equal to 1 ms. The value of current his The value of current 2 is 5 mH

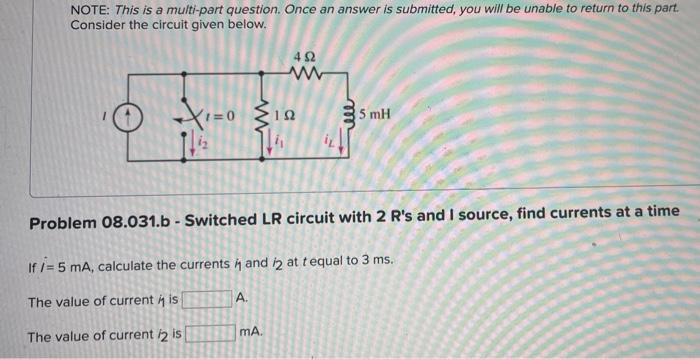

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider the circuit given below. +1=0 A. 492 www Problem 08.031.b - Switched LR circuit with 2 R's and I source, find currents at a time If /= 5 mA, calculate the currents i and 2 at t equal to 3 ms. The value of current is The value of current /2 is mA. 5 mH
