About Bipolar Junction Transistors applications: Full wave rectifier with output voltage regulation: For the circuit bel

Post by answerhappygod »

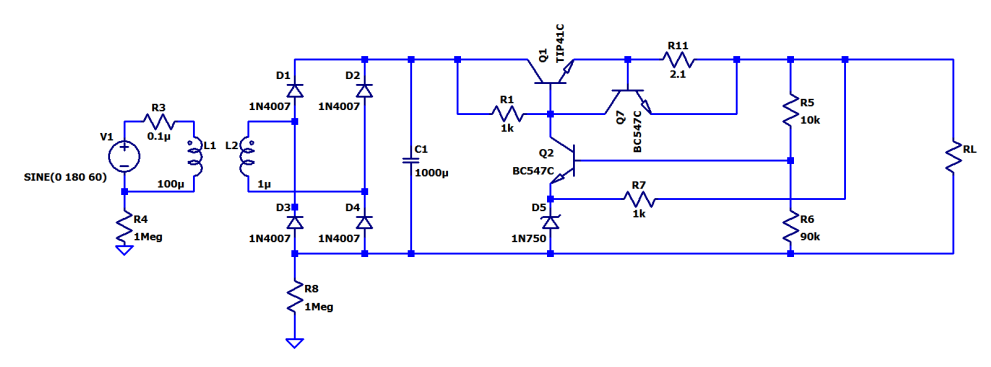

About Bipolar Junction Transistors applications:Full wave rectifier with output voltage regulation:For the circuit below, answer:a) Describe the operation of the circuit.b) What is the voltage level across capacitor C1?c) What is the output voltage? Justify your answer.d) If it is of interest to increase the output voltage by 10%,which components should be changed? Justify your answer.e) What is the maximum output current? Justify your answerf) If it is of interest to reduce the maximum output current by10%, which components should be changed? Justify your answer.
About Bipolar Junction Transistors Applications Full Wave Rectifier With Output Voltage Regulation For The Circuit Bel 1
About Bipolar Junction Transistors Applications Full Wave Rectifier With Output Voltage Regulation For The Circuit Bel 1 (43.19 KiB) Viewed 16 times
SINE(0 180 60) 是 焦 功 BC5470 TIP41C 0 BC547C ES A 怎
