QAsingle phase fall wave controlled bridge rectifier (B2) is connected via a transformer (azll) to a Voltage Source Vp(t

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

QAsingle phase fall wave controlled bridge rectifier (B2) is connected via a transformer (azll) to a Voltage Source Vp(t

Post by answerhappygod »

Qasingle Phase Fall Wave Controlled Bridge Rectifier B2 Is Connected Via A Transformer Azll To A Voltage Source Vp T 1
Qasingle Phase Fall Wave Controlled Bridge Rectifier B2 Is Connected Via A Transformer Azll To A Voltage Source Vp T 1 (609.02 KiB) Viewed 19 times

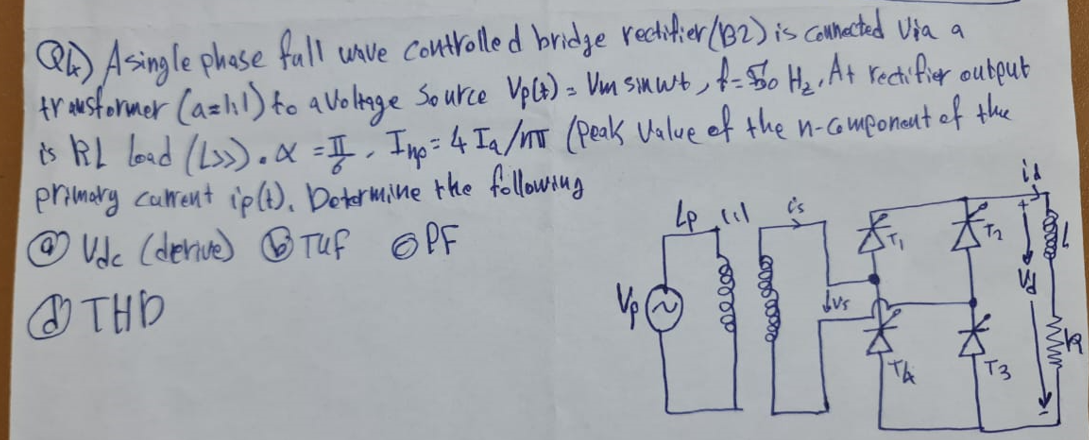

QAsingle phase fall wave controlled bridge rectifier (B2) is connected via a transformer (azll) to a Voltage Source Vp(t) = Um simut, f=50 H₂. At rectifier output is RL load (LS). α = II. Imp= 4 Ia/no (Peak Value of the n-component of the primary current ip(t). Determine the following Vdc (derive) ⓇTuF OPF THD ooooo is dvs $₁₁
