- The Following Figure Shows A Voltage Regulator Uses A Zener Diode Calculate The Followings A The Current For Each Bra 1 (80.29 KiB) Viewed 14 times
A. In the following figure, calculate IB, Ic, adc, VCE Vcc = 12 V R₂ = 220 ΚΩ W R₂ = 1.2 kn Bα = 100
The following figure shows a voltage regulator uses a Zener diode. Calculate the followings; a. The current for each bra
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The following figure shows a voltage regulator uses a Zener diode. Calculate the followings; a. The current for each bra

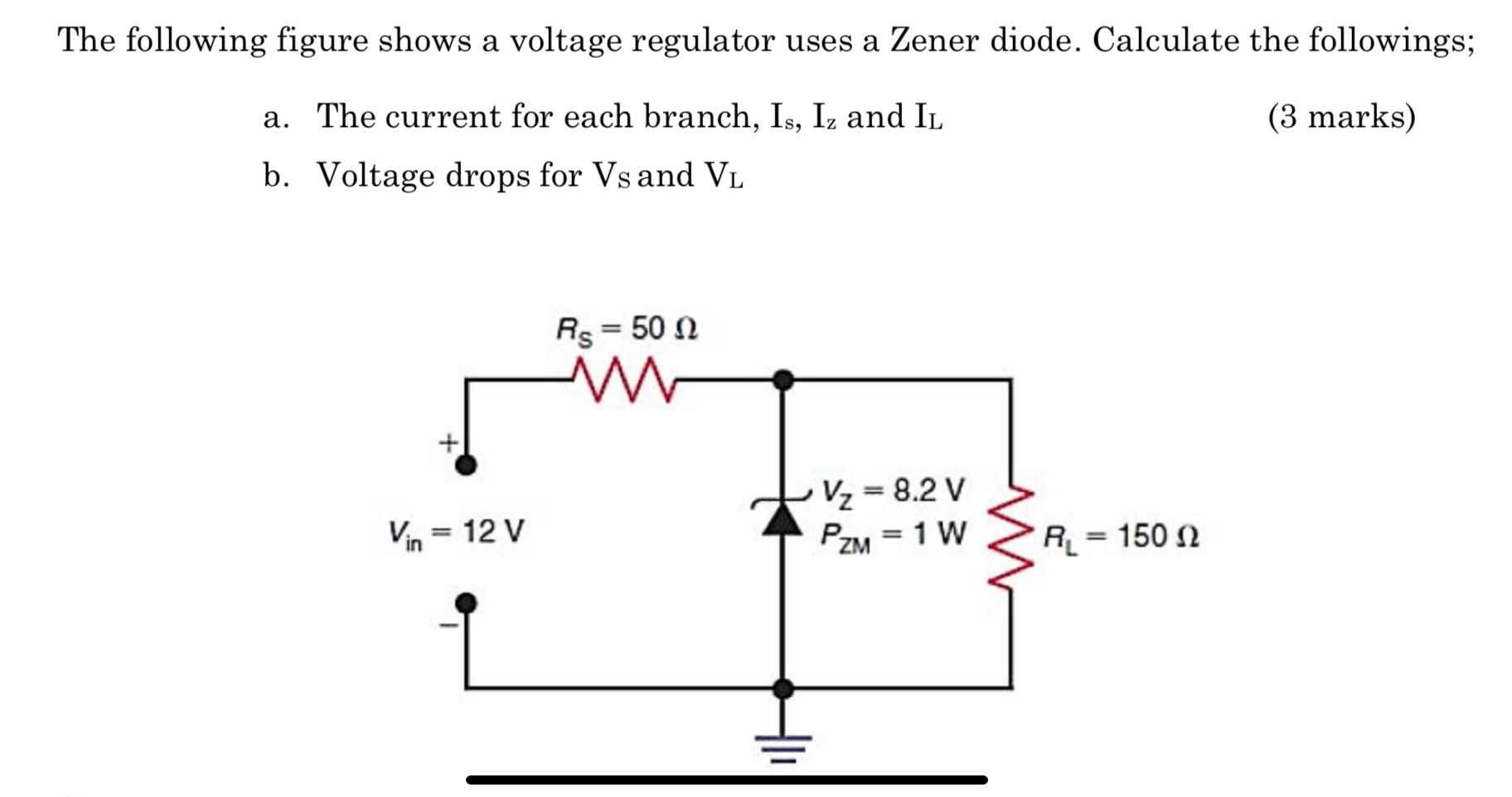

The following figure shows a voltage regulator uses a Zener diode. Calculate the followings; a. The current for each branch, Is, Iz and IL (3 marks) b. Voltage drops for Vs and VL Vin = 12 V Rs = 50 m V₂ = 8.2 V PZM = 1 W RL = 1500
A. In the following figure, calculate IB, Ic, adc, VCE Vcc = 12 V R₂ = 220 ΚΩ W R₂ = 1.2 kn Bα = 100
A. In the following figure, calculate IB, Ic, adc, VCE Vcc = 12 V R₂ = 220 ΚΩ W R₂ = 1.2 kn Bα = 100
