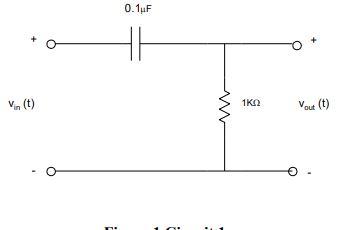

0.1μF ΙΚΩ Vout (t) Θ
1. Part B.1: Calculate the transfer function for the circuit of Figure 1. 2. Part B.3: Plot the transfer function for the circuit of Figure 1. Use the actual function for your plot, not the straight-line approximation. Use appropriate log paper for this. You will be plotting measured values on the same graph when you get to the lab.
