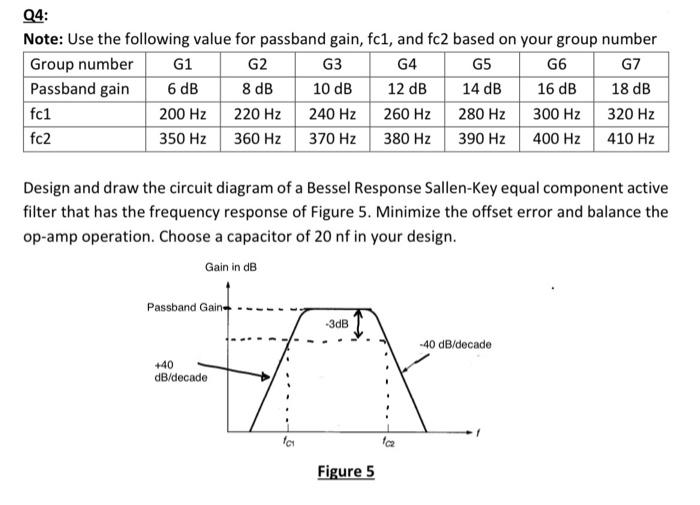

Q4: Note: Use the following value for passband gain, fc1, and fc2 based on your group number Group number G4 G5 G7 Passband gain 12 dB 14 dB 18 dB 260 Hz 280 Hz 320 Hz 380 Hz 390 Hz 410 Hz fc1 fc2 G1 6 dB 200 Hz 350 Hz G2 8 dB 220 Hz 360 Hz +40 dB/decade G3 10 dB 240 Hz 370 Hz Design and draw the circuit diagram of a Bessel Response Sallen-Key equal component active filter that has the frequency response of Figure 5. Minimize the offset error and balance the op-amp operation. Choose a capacitor of 20 nf in your design. Gain in dB Passband Gain- -3dB A for fc₂ Figure 5 G6 16 dB 300 Hz 400 Hz -40 dB/decade
