CSE 251: Electronic Devices and Circuits (Summer'22) Assignment-2 1. Find the values of I and V in the circuit shown bel

[answerhappygod]

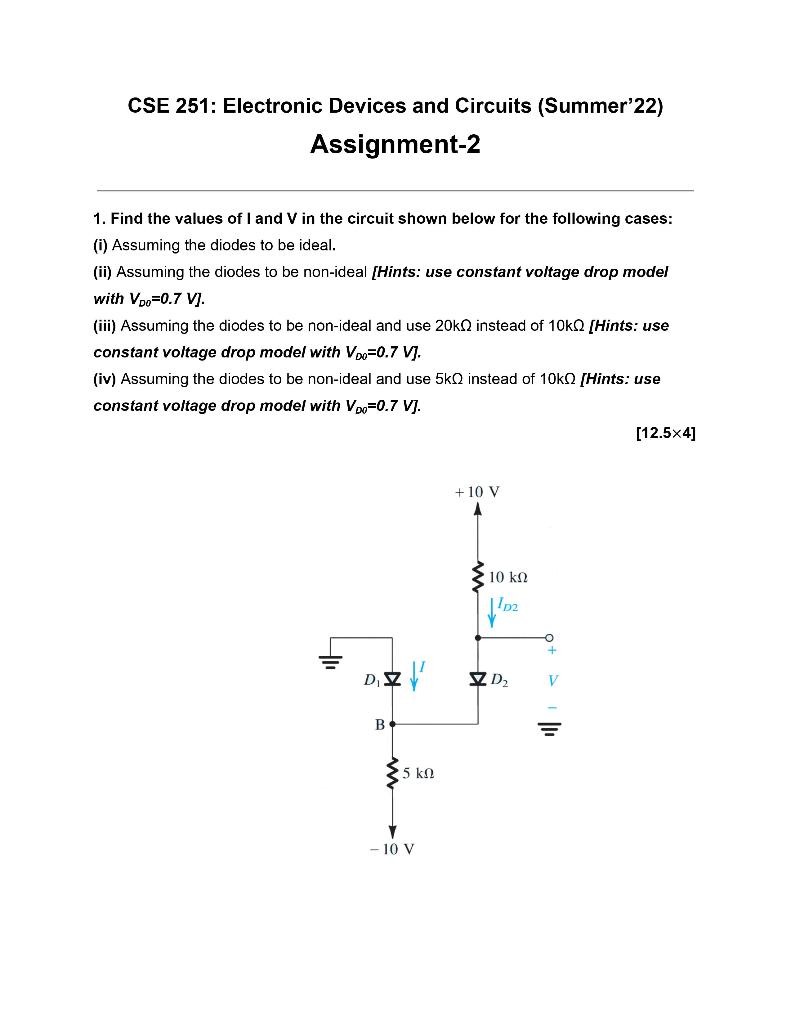

Cse 251 Electronic Devices And Circuits Summer 22 Assignment 2 1 Find The Values Of I And V In The Circuit Shown Bel 1 (55.2 KiB) Viewed 17 times

CSE 251: Electronic Devices and Circuits (Summer'22) Assignment-2 1. Find the values of I and V in the circuit shown below for the following cases: (i) Assuming the diodes to be ideal. (ii) Assuming the diodes to be non-ideal [Hints: use constant voltage drop model with VDO=0.7 V]. (iii) Assuming the diodes to be non-ideal and use 20k instead of 10k0 [Hints: use constant voltage drop model with VD=0.7 V]. (iv) Assuming the diodes to be non-ideal and use 5kQ instead of 10k0 [Hints: use constant voltage drop model with VD-0.7 VJ. 41 D₁Z ' B 15 ΚΩ - 10 V + 10 V 10 ΚΩ 1/D2 D₂ + V [12.5x4]
