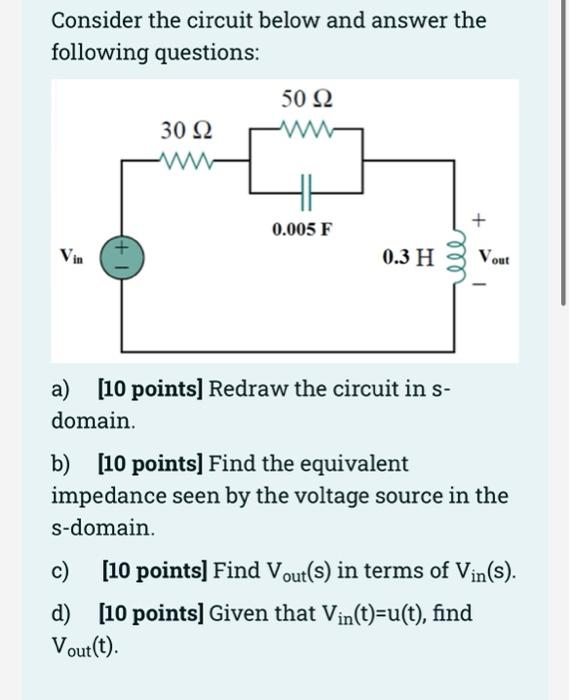

Consider the circuit below and answer the following questions: Vin 30 Ω 50 Ω 0.005 F c) d) Vout(t). 0.3 H a) [10 points]

[answerhappygod]

1 (39.66 KiB) Viewed 19 times

2 (39.66 KiB) Viewed 19 times

Consider the circuit below and answer the following questions: Vin 30 Ω 50 Ω 0.005 F c) d) Vout(t). 0.3 H a) [10 points] Redraw the circuit in s- domain. + Vout 1 b) [10 points] Find the equivalent impedance seen by the voltage source in the s-domain. [10 points] Find Vout(s) in terms of Vin(s). [10 points] Given that Vin(t)=u(t), find
