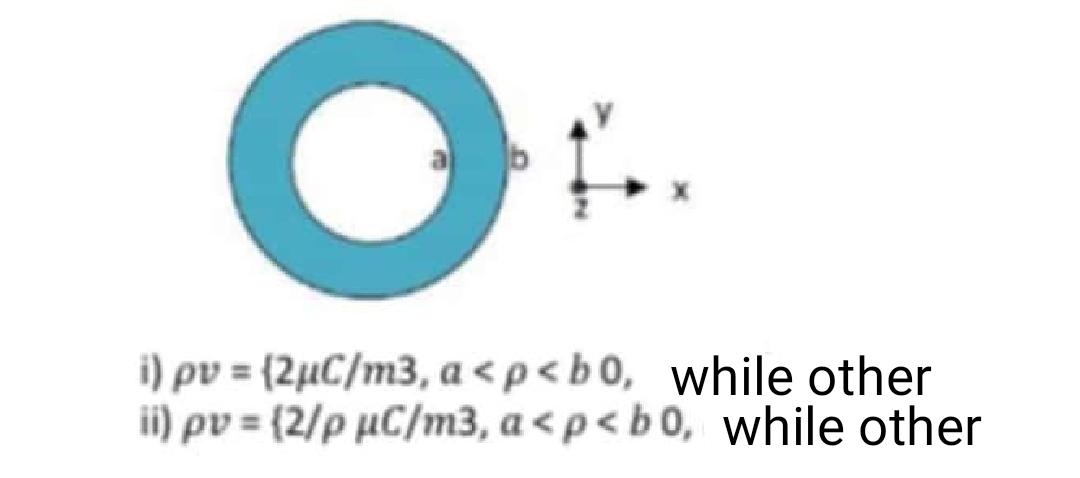

An infinite-length volumetric charge density (pv) with a ring-shaped cross-section is located along the z-axis as shown

[answerhappygod]

An infinite-length volumetric charge density (pv) with aring-shaped cross-section is located along the z-axis as shown inthe figure. The inner radius of the ring is a = 1m, the toothradius b = 2m.

An Infinite Length Volumetric Charge Density Pv With A Ring Shaped Cross Section Is Located Along The Z Axis As Shown 1 (29.65 KiB) Viewed 19 times

Obtain the electric field distribution for regions a ) p < a, b ) a < p < b , c ) p > b using the integral form ofGauss's Law .
C i) pv = {2µC/m3, a <p<b0, while other ii) pv = {2/p µC/m3, a<p<b0, while other
