Q2 The Response Of A Second Order System When Subjected To A Step Input Is Shown In Figure Q2 Use Your Student Matric N 1 (26.68 KiB) Viewed 20 times
pls use S=2 T=0 U=1
pls ans quickly

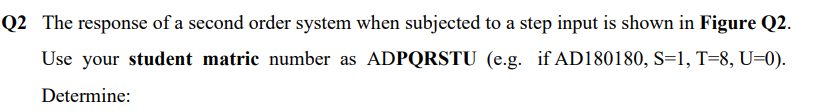

Q2 The response of a second order system when subjected to a step input is shown in Figure Q2. Use your student matric number as ADPQRSTU (e.g. if AD180180, S=1, T-8, U=0). Determine:
(c) The settling time, Ts (d) The transfer function (o marks) (3 marks) (3 marks)
y(t) 1.1S 1.0T 0.1 0 T,- Rise time Overshoot 3.U Figure Q2 Ts Settling time ess Time (s)
