It is desired to divide the battery voltage using a voltage divider circuit. 1. Draw the voltage divider circuit. 2. Ass

Post by answerhappygod »

It Is Desired To Divide The Battery Voltage Using A Voltage Divider Circuit 1 Draw The Voltage Divider Circuit 2 Ass 1
It Is Desired To Divide The Battery Voltage Using A Voltage Divider Circuit 1 Draw The Voltage Divider Circuit 2 Ass 1 (50.61 KiB) Viewed 20 times

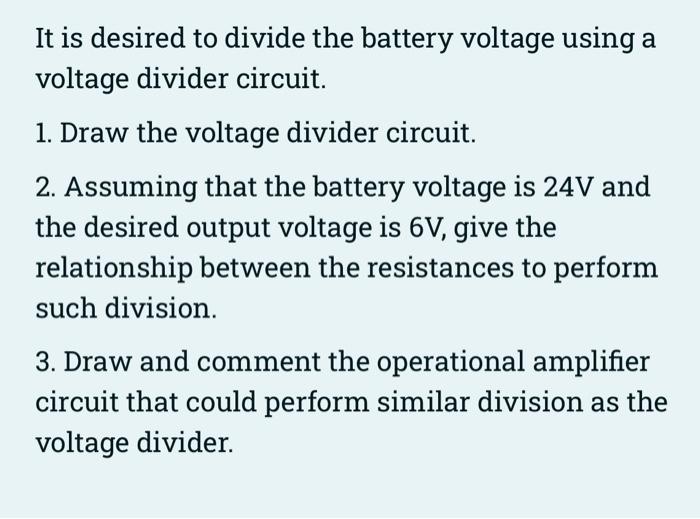

It is desired to divide the battery voltage using a voltage divider circuit. 1. Draw the voltage divider circuit. 2. Assuming that the battery voltage is 24V and the desired output voltage is 6V, give the relationship between the resistances to perform such division. 3. Draw and comment the operational amplifier circuit that could perform similar division as the voltage divider.
