Q3 (a) (b) Describe the rules how to construct (draw) the root locus if the angle of asymptote are +60° and 180º. (5 mar

[answerhappygod]

Q3 A B Describe The Rules How To Construct Draw The Root Locus If The Angle Of Asymptote Are 60 And 180o 5 Mar 1 (29.22 KiB) Viewed 18 times

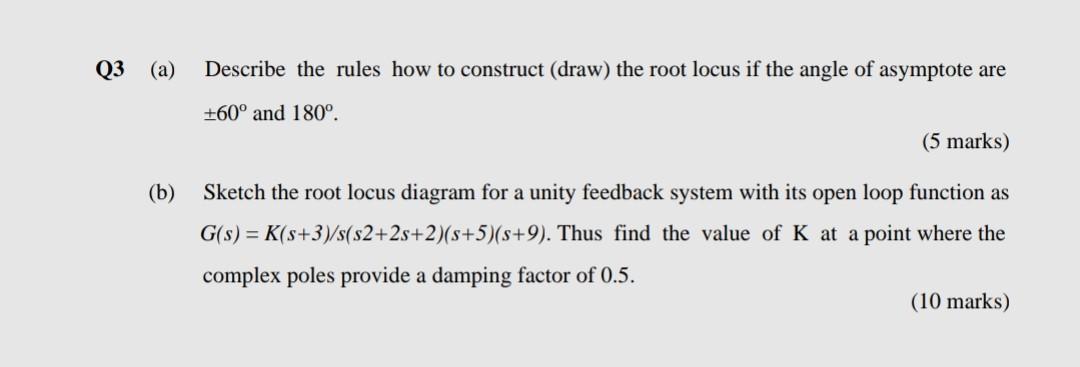

Q3 (a) (b) Describe the rules how to construct (draw) the root locus if the angle of asymptote are +60° and 180º. (5 marks) Sketch the root locus diagram for a unity feedback system with its open loop function as G(s) = K(s+3)/s(s2+2s+2)(s+5)(s+9). Thus find the value of K at a point where the complex poles provide a damping factor of 0.5. (10 marks)
