dear answers expert answer quickly and well

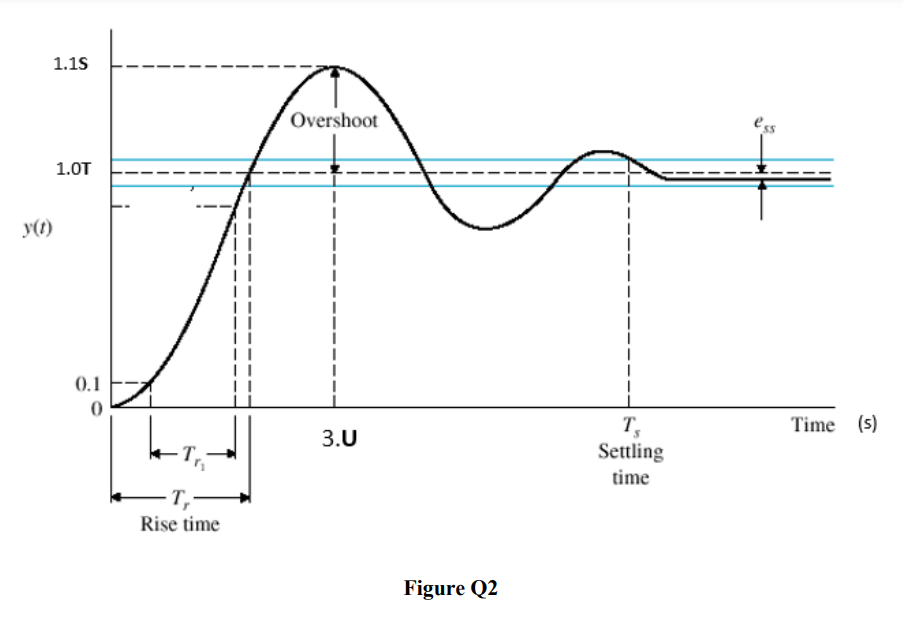

1.1S y(t) 1.0T 0.1 0 T₁- Rise time Overshoot 3.U Figure Q2 T, Settling time Time (s)

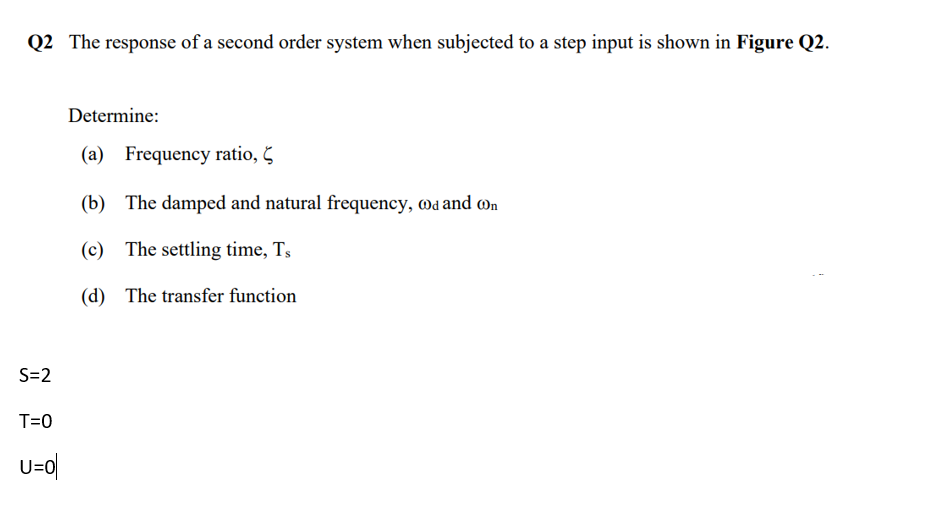

Q2 The response of a second order system when subjected to a step input is shown in Figure Q2. S=2 T=0 U=O Determine: (a) Frequency ratio, (b) The damped and natural frequency, wd and n (c) The settling time, Ts (d) The transfer function
