14.21A (D) 5.37A Q.4 In a 3 phase, salient pole synchronous generator with the 'a' phase terminal voltage of V20⁰ volts,

Post by answerhappygod »

14 21a D 5 37a Q 4 In A 3 Phase Salient Pole Synchronous Generator With The A Phase Terminal Voltage Of V20 Volts 1
14 21a D 5 37a Q 4 In A 3 Phase Salient Pole Synchronous Generator With The A Phase Terminal Voltage Of V20 Volts 1 (63.66 KiB) Viewed 14 times

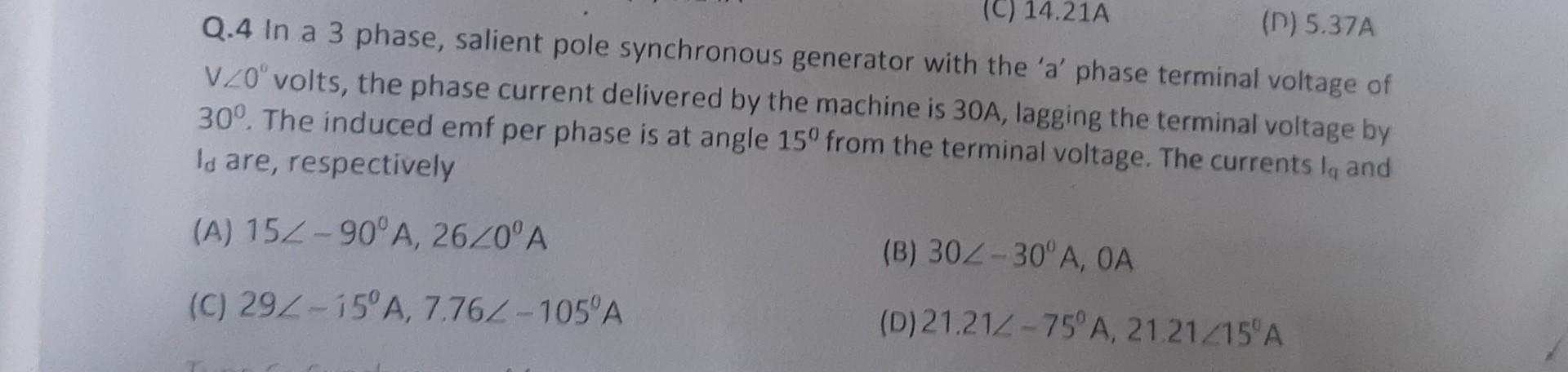

14.21A (D) 5.37A Q.4 In a 3 phase, salient pole synchronous generator with the 'a' phase terminal voltage of V20⁰ volts, the phase current delivered by the machine is 30A, lagging the terminal voltage by 30°. The induced emf per phase is at angle 15º from the terminal voltage. The currents I, and Id are, respectively (A) 152-90° A, 26/0° A (C) 29/-15°A, 7.762-105 A (B) 302-30° A, OA (D) 21.212-75°A, 21.21/15 A
